Baldor-Reliance Motor VEBNM3538, .5HP, 1750RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1

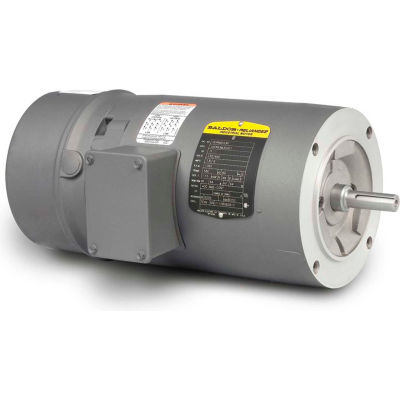

Actual product may differ from image shown

Baldor-Reliance Motor VEBNM3538, .5HP, 1750RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1

Item #: WBB391243

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,227.00 up to 18% OFF

Price: $1,010.00

$168.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,010.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1750RPM,3PH,60HZ,56C,3516M,TENV,F1

Features:
  • Standard NEMA BA dimension
  • Spring set brake
  • Power off operation manual release
  • NEMA Premium® Efficiency and inverter-ready
  • 230/460V brakes are connected in conduit box
Typical Applications:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETENV
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz1765
  • RPM1765
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT41
  • MANUFACTURERS PART NUMBERVEBNM3538
  • RPM RANGE1701-1800
  • 208V AMPS--
  • KVA-CODEN
  • POWER-FACTOR64
  • FL EFFICIENCY84
  • SERIAL-NUMBER--
  • SPEC. NUMBER35F893M303G1
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS1.8/.9
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES15.26
  • BRAKE RATING3
  • POLES4
  • INSULATION CLASSF
