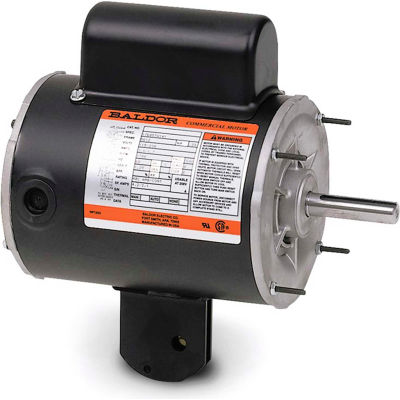

Baldor-Reliance Motor YPC144A, .25HP, 1625RPM, 1PH, 60HZ, 48YZ, 1708C, TEAO, F

Baldor-Reliance Motor YPC144A, .25HP, 1625RPM, 1PH, 60HZ, 48YZ, 1708C, TEAO, F

Item #: WBB391912

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$213.00 up to 1% OFF

Price: $209.95

Save $10.50 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .25HP,1625RPM,1PH,60HZ,48YZ,1708C,TEAO,F

Features:
  • 1.0 service factor
  • 40°C ambient
  • Automatic thermal overload
  • Ball bearing
  • Class B insulation
  • Extended thru-bolts on 5.13 inch bolt circle for mounting fan shroud
  • Heavy gage steel yoke with 180° slot for wide angle rotation
  • Permanent split capacitor
  • Pull chain switch (2spd only) for high and low speed
  • Reversible rotation
  • Shaft slinger
  • Terminal panel with quick connections
Typical Applications:
Designed for air circulation

Product Specifications

  • HORSEPOWER1/4
  • ENCLOSURETEAO
  • FRAME48YZ
  • BRANDBaldor-Reliance
  • MOUNTINGYoke/Pedestal
  • MOTOR RPM 60Hz1625
  • RPM1625
  • PHASE1
  • VOLTAGE115
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT15
  • RPM RANGE1501-1700
  • SERVICE-FACTOR-AMPS--
  • MANUFACTURER PART NUMBERYPC144A
  • THERMAL-SELECTN
  • 208V AMPS--
  • KVA-CODEC
  • POWER-FACTOR--
  • FL EFFICIENCY57.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER17E141W312
  • DESIGN CODEN
  • BALDOR CATALOG NUMBERYPC144A
  • FL AMPS3.5
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES10.48
  • POLES4
  • INSULATION CLASSB
