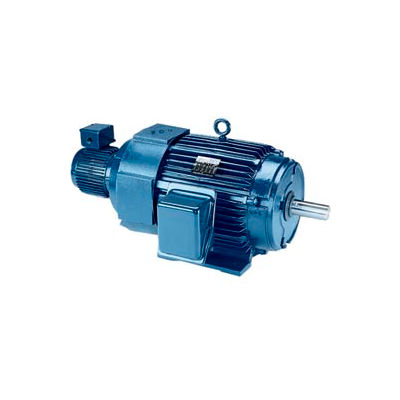

Leeson Motors - 100HP, 230/460V, 1785RPM, TEBC, Rigid C Mount, 1.0 S.F.

Leeson Motors - 100HP, 230/460V, 1785RPM, TEBC, Rigid C Mount, 1.0 S.F.

Item #: WBB217470

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$24,817.00 up to 52% OFF

Price: $12,019.00

$2,003.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $12,019.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Inverter Motor: 100HP, 1785RPM, 405TC Frame, Totally-Enclosed, Blower-Cooled (TEBC), 230/460V, 3PH, INVERTER duty, No thermal protection, 1.0 Service Factor, Rigid C Mount.

Features: Class H inverter-rated IRISTM insulation system Constant torque operation from 0 to base RPM rating on Vector Drives Constant HP operation to twice base RPM rating for 143T-256T frame, 1.5 x base RPM for all other sizes Designed for optimum performance with IGBT inverters - not for across-the-line starting C-face with rigid base through 100HP Normally closed thermostats (one per phase) Continuous duty at 40° C ambient 1.0 Service Factor (Class "B" rise on TEBC motors) Premium quality, cast iron frame and endbells 284T and larger are blower-cooled with a separately powered three-phase blower motor to provide added cooling at low speeds Ball bearings (Roller bearings available 360-frame and larger) Field convertible to F2 mounting Encoder provisions included on opposite drive end. UL Recognized and CSA Certified Three-Year Limited Warranty Meets NEMA MG1, parts 30 and 31



Click here to see our full selection of Motor Controls and Drives.


Compatibility
Baldor: IDM4400T-4
Marathon: Y575

Product Specifications

  • HORSEPOWER100
  • ENCLOSURETEBC
  • FRAME405TC
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz1785
  • RPM1785
  • PHASE3
  • VOLTAGE230/460
  • NAMEPLATE AMPS230/115
  • COMPATIBLE WITH/REPLACESBaldor IDM4400T-4, Marathon Y575
  • HERTZ60
  • SERVICE FACTOR1.0
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • EFFICIENCY94.5
  • CONSTRUCTIONCast Iron
  • AMBIENT TEMP C40
  • SHAFT DIAMETER2.88
  • ROTATIONCCW/CW
  • ENCLOSURE TYPETotally Enclosed
  • SHAFT END BEARING6316
  • WEIGHT1420
  • ULY
  • CSAY
  • LEESON MODEL NO.405THFS8329
  • UPC69172021124
  • DUTYInverter
  • MANUFACTURERS PART NUMBER810087.00
  • RPM RANGE1701-1800
  • is_motorYes
  • DESIGNSq Cage Inv Duty
