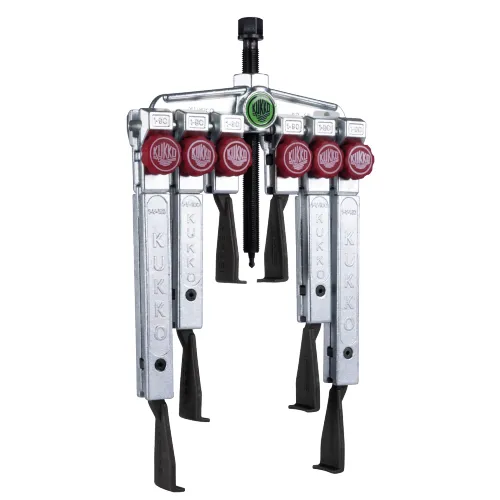

For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.
- The thin pulling hooks are suitable for narrow, difficult-to-access locations.
- A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
- Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Cross-beam with hexagonal profile for good grip.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
- Stability support from optional series 219 clamp.
Thin pulling jaws in various lengths with quick-adjusting capability. Parallel pulling hooks in every position, even with full load. Pulling hooks with infinitely variable adjustment on the cross-beam. Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip). Mechanical pressure screw. Milled thread treated with special coating. Two-arm design for space-saving operation. Series 20+
- Spread Used Internal 2 3/4 - 7 1/8 "
- Maximum Load (Metric) 2, 5t
- Hexagon Drive (Male) (Metric) 17mm
- Spread Used Internal (Metric) 70 - 180mm
- Depth (Metric) 100/200/250mm
- Spread (Metric) 120mm
