Machine Tape Sold Separately
Price: $8,710.00
Customers Also Viewed

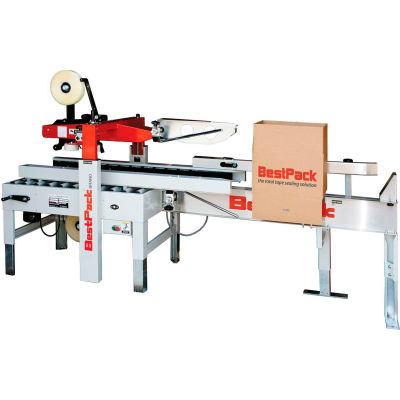

Affordable solution geared towards increasing output and reducing operator repetitive motion. This all-in-one allows for an operator to form, pack and seal a box efficiently without the need of a costly case erector. Using 3" wide tape it seals the bottom of cases ranging in length from 7.8"-23.6", width of 6.5"-19.6" and height of 4"-19.6".
Features:
- Heavy Duty 2 mm CNC cut and welded frame including upper welded legs
- Self-centering extended belt drive system with 1 piece molded belts and V-belt guide with rollers behind the belts to reduce the wear and tear on the belts, stress on the motors and increase belt and motor life
- Folds top 3 flaps and bottom 4 flaps
- Exclusive Pop-Out High Speed Tape Heads with patented tab adjustment and noise reduction arm
- Top compression rollers
- Optional width rails available for narrower or wider boxes
Product Specifications
- BRANDBestPack
- TAPE WIDTH INCHES3
- MACHINE LENGTH INCHES99-11/16
- MACHINE WIDTH INCHES32-13/16
- MACHINE HEIGHT INCHES70-5/16
- MAXIMUM BOX LENGTH INCHES23-5/8
- MAXIMUM BOX WIDTH INCHES19-5/8
- MAXIMUM BOX HEIGHT INCHES19-5/8
- MINIMUM BOX LENGTH INCHES7-7/8
- MINIMUM BOX WIDTH INCHES6-1/2
- MINIMUM BOX HEIGHT INCHES4
- MINIMUM BOX WEIGHT LBS0.1
- WEIGHT LBS420
- COLORGrey/Red
- CONSTRUCTION2mm CNC
- BOX BELT SPEED80 ft. Per Minute
- OPERATING SPEED15 Boxes/Minute
- VOLTAGE110V
- WATTAGE330W
- AMPS3
- HERTZ60
- DESCRIPTIONManual Adjustable Case Sealer
- TYPESide Belt Drive
- PACKAGE QUANTITY1
- MANUFACTURERS PART NUMBERMSDBF22-3
- SERIESMSDBF
- POWER CORD LENGTH FEET7
- LIMITED WARRANTY1 Year
- CONVEYOR HEIGHT ADJUSTMENT23-1/2 - 30"
-
