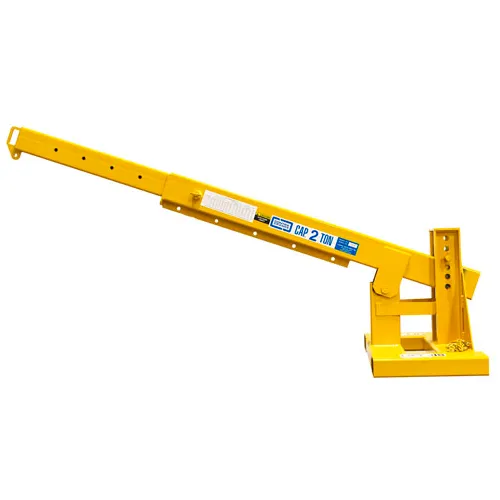

Contrx Pivot Boom Forklift Jib-Lift Crane, 24" On-Center Fork Pockets, 4000 Lbs. Capacity

Perfect for when job includes high and hard to reach objects. Quickly and easily convert your forklift into a mobile pivoting boom lift. Telescoping boom adjusts from 84" to 147" horizontally in 7-1/2" increments and adjusts vertically five elevations up to 37 degrees (99-1/2") above horizontal. Features 3' restraining chain with grab hook, swivel hooks with safety latches, ten alternate hook positions and a boom locking T-pin. Maximum Load on a Single Hook: At 36" Hook Position = 6000 lbs. At 60" Hook Position = 4500 lbs. At 84" Hook Position = 3500 lbs. At 99" Hook Position = 2900 lbs. ...

Telescopic and Pivoting Boom Converts Your Fork Lift into a Versatile Mobile Crane. This forklift lifting boom offers an adjustable telescopic reach of up to 12 feet in 12" increments, and adjust vertically in five elevations up to a maximum of 40 degrees (76") in height above horizontal. Portable and compact lifting boom easily fits standard forklift trucks, and includes a hand pull with a locking T-pin at the end for easy extension. Mobile jib crane also includes a restraining chain with grab hook for safety. Swivel hooks have safety hook latches. Heavy duty steel construction with a ...

Ergonomically designed Contrx workstation jib cranes are widely used for repetitive motion material handling applications requiring 360 degree boom rotation. Low-friction enclosed track protects running surface from dirt, for minimal resistance. Includes trolley with lifetime lubricated and sealed wheel bearings that accepts most hoists, balancers and manipulators. Made in USA.

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. This unit come with an infinitely adjustable locking screw. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks. Features: Unique design converts fork trucks into overhead lifting cranes Fork pockets with safety strap attach & secure boom to fork truck Robotically welded construction provides precision and durability ...

The short boom length of this crane is perfect for use in tight, restricted space areas. Each crane includes integral fork pockets, safety restraint and 2 hoisting hooks (one swivel, one rigid). Heavy duty robotically welded steel construction features a durable chip-resistant enamel finish. Maximum Load on a Single Hook: At Inner Hook = 8000 lbs. At Outer Hook = 4000 lbs. ** "S" Dimension is the dimension from the center to center of the fork tine sleeves. NOTE: OSHA requires contacting the manufacturer of your truck for written approval for the use of any fork truck attachments.
