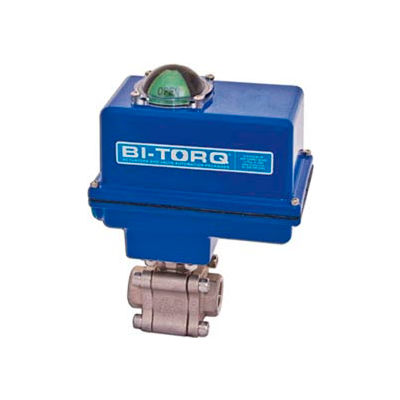

BI-TORQ 1/2" 3-Pc SS NPT Fire Safe Ball Valve W/NEMA 4 115VAC/4-20mA Positioner

BI-TORQ 1/2" 3-Pc SS NPT Fire Safe Ball Valve W/NEMA 4 115VAC/4-20mA Positioner

Item #: WBB439280

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,302.00

$217.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,302.00 or save 5% on purchase.

Quantity Discount

  • Buy 1 $1,302.00 ea.
  • Buy 2+ $1,171.00 ea.

Quantity

Customers Also Viewed

1/2" 3-Pc SS NPT Fire Safe Ball Valve W/NEMA 4 115VAC/4-20mA Positioner

The BI-TORQ FS-3PT-05-200-E-A-4-VP is an electrically-actuated 1/2" full port SS ball valve with NPT (threaded) ends. The valve is API 607 fire safe certified with a high-performance seat design. It has a pressure rating to 2000 PSI and a temperature rating from -40°F to +450°F. The standard TFE seats are compatible with a wide range of industries and media type; additional seats such as RTFE, Delrin, PEEK and TFM are available as well. All FS-series valves have graphoil seals to meet fire safe certification and the 3-piece design allows for easy maintenance without removing the end pieces from the pipeline. This version comes complete with a BI-200-A-4-VP 115VAC electric actuator with NEMA 4 powder-coated aluminum enclosure and a 4-20mA controller card for modulating service.

Product Specifications

  • LENGTH INCHES7.34
  • WIDTH INCHES4.75
  • HEIGHT INCHES10-13/32
  • BRANDBi-Torq
  • PACKAGE QUANTITY1
  • TYPE OF ACTUATIONModulating
  • DIAMETER INCHES1/2
  • MANUFACTURER PART NUMBERFS-3PT-05-200-E-A-4-VP
  • END CONNECTIONSNPT
  • CONSTRUCTIONValve: Stainless Steel; Actuator: Powder Coated Aluminum
  • # OF PORTS3-Way
  • VALVE TYPEBall
  • ACTUATORElectric
  • ACTUATED OR MANUALActuated
  • VALVE SIZE1/2"
  • BODY MATERIALSS-FS
