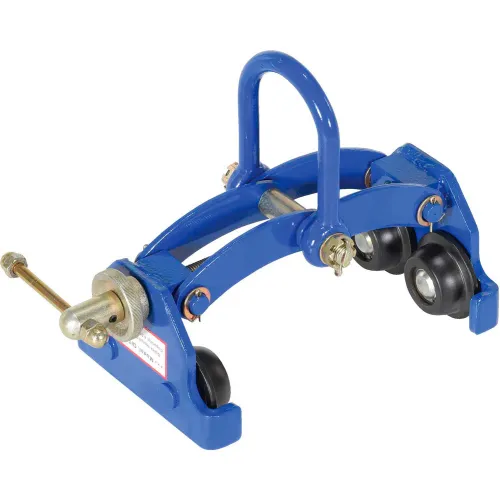

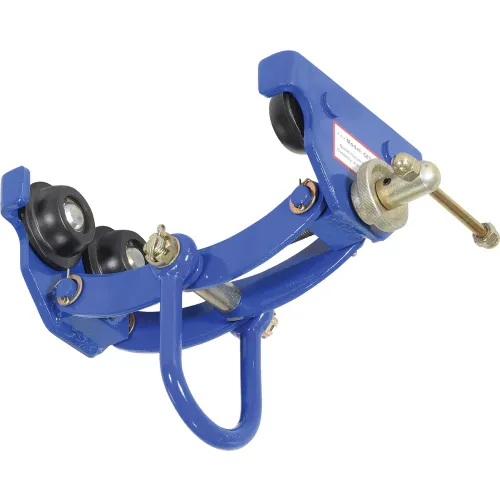

These trollies are dependable, easy, and safe to use. Designed to easily adjust to the width of virtually any S, H, W, and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a Beam Clamp). Each trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (sold separately). Steel construction and painted finish.
Share
Spec Sheet
Quick Install Manual Trolley QIT-4 4000 Lb. Capacity
(1)
|
Questions & Answers (0)
Product Description
PRICE
$331.95
1
1
Bulk Pricing
Quantity
Pricing
Buy 1 unit - 2 units
331.95
Buy 3 units - 7 units
299.95Save $32.00 (10%)
Buy 8+ units
289.95Save $42.00 (13%)
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Weight Capacity | 4000 lbs |
| Weight | 16 lbs |
| Head Room | 10.000 in |
| Beam Width | 3 to 7-1/2 in |
Product Details
| Type | Standard Trolley |
| Material | Steel |
| Operation | Manual |
| Color | Blue |
| Manufacturers Part Number | QIT-4 |
| Brand | Vestil |
