- Marked with radius size
- Concave and convex radius gages
- With locking clamp

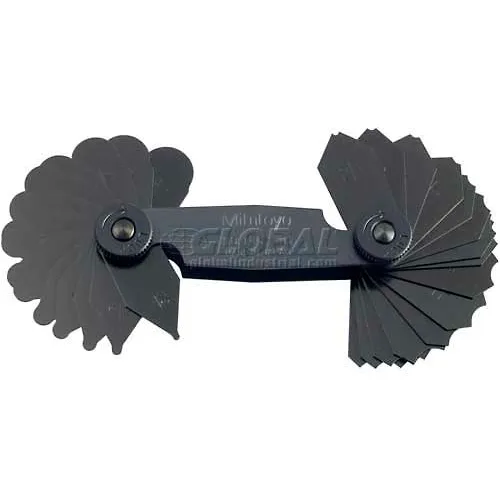

Mitutoyo 186-101 Radius Gage
Write a Review
Questions & Answers (0)
Specifications
Weights & Dimensions
| Max Size | 1/4 in |
| Min Size | 1/32 in |
Product Details
| Manufacturers Part Number | 186-101 |
| Type | Radius Gage Set |
| Leaf Count | 15 |
| Brand | Mitutoyo |
