Sloan

Model # :WBB252785

MPN #: 3912475

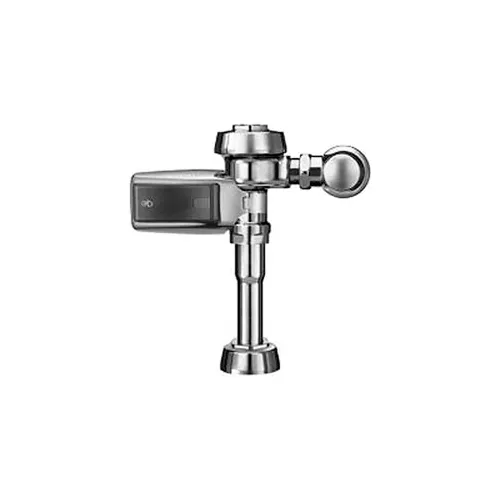

Sloan ROYAL 180-1 SMOOTH Electronic Flushometer Valve

Product Description
Exposed,Sensor Activated Royal Model Urinal Flushometer,for 1" top spud urinals. Low Consumption 1.0 GPF

  • Flush Accuracy Controlled by CID Technology
  • Non-Hold-Open Handle,Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • User in View Flashing LED
  • Mechanical Manual Override Flush Handle
  • High Copper,Low Zinc Brass Castings for Dezincification Resistance
  • Four 4 Size C Batteries included
  • Diaphragm,Handle Packing,Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
  • Low Battery Flashing LED
  • Sweat Solder Adapter w Cover Tube and Cast Wall Flange w Set Screw
  • Adjustable Tailpiece
  • Chrome Plated Metal Sensor Housing
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 25 to 80 psi Operating Range
  • Spud Coupling and Flange for 1" Top Spud
  • ADA Compliant OPTIMA SMOOTH Battery Powered Infrared Sensor for automatic "Hands-free" operation
  • Sensor with Automatic Range Adjustment
  • Free Spinning Vandal Resistant Stop Cap
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
PRICE
$525.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight12.5 lbs
Spud Size1-1/4 in
Tailpiece Size1-1/4 in

Product Details

Battery Type(4) C Alkaline
Gallons per Flush1 gal/flush
ColorSilver
SeriesRoyal 180-1
Liters per Flush3.8
For Use WithUrinal
FinishChrome Plated, Semi Red Brass
Flush TypeSensor W/Manual Override
Manufacturers Part Number3912475
Installation TypeExposed
Spud PlacementTop
BrandSloan

Compliance & Certifications

ADA CompliantYes
