This durable tool has 51 leaves, each marked with a thread pitch. 4-42 TPI. .4-7mm. Includes locking clamp on each end.
Share
Spec Sheet

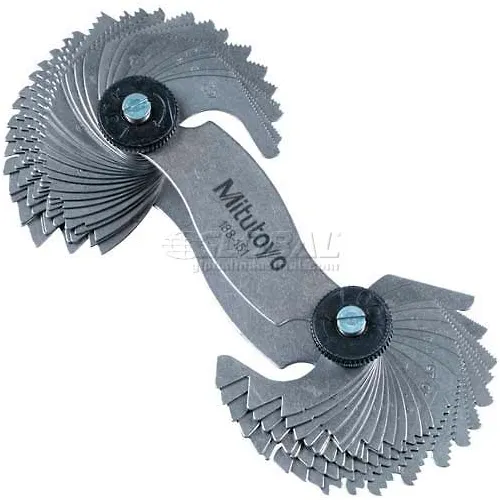

Mitutoyo 188-151 Screw Pitch Gage
(1)
|
Questions & Answers (0)
Product Description
PRICE
$73.95
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Max Size | 42 TPI in |
| Min Size | 4 TPI in |
Product Details
| Style | Metric and Unified Screw |
| Type | Pitch Gage Set |
| Leaf Count | 51 |
| Manufacturers Part Number | 188-151 |
| Brand | Mitutoyo |
