Little Giant

Model # :WBB778492

MPN #: 503203

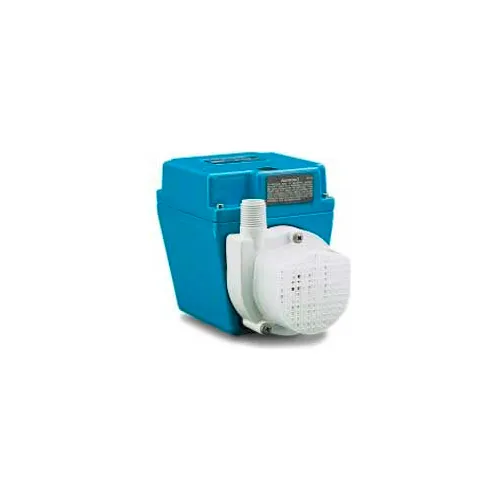

Little Giant 503203 3E-12NR Small Submersible Pump - Dual Purpose- 115V- 670 GPH At 1'

Product Description
Little Giant® Small Submersible Pump 3E-12NR, Dual Purpose, 115V, 670 GPH At 1'

Dual purpose oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial, and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or re-circulated. This compact 500 GPH pump features a 1/2" MNPT discharge and 17.3' shut-off head capability. It is not recommended to use the 3E series in aquariums, swimming pools .

Features:

  • 670 GPH At 1 ft
  • Operates submersed or in-line
  • 6' cord
  • Epoxy-coated aluminum housing.
  • 1/2" FNPT inlet with snap-off screen for easy cleaning
  • 1/2" MNPT outlet accepts 3/4" I.D. tubing.
  • Thermally protected
PRICE
$335.95

1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length7 in
Width4-1/2 in
Height5-1/2 in
Weight8 lbs
Cord Length6 ft
Max Head22.6 ft
Inlet Connection1/2 in
Discharge Connection Size1/2 in

Product Details

Max Fluid Temperature120 °F
Gallons per Minute11 gal/min
Impeller MaterialNylon
Wattage200 W
MaterialAluminum
Phase1
Discharge Connection TypeMNPT
Manufacturers Part Number503203
SubmersibleYes
Temperature of Liquid Pumped120
Continuous OperationYes
BrandLittle Giant
TypeSmall Submersible Pump
Horsepower1/15 HP
Amperage3.2 A
Series3E-12NR
Hertz60 Hz
Voltage115 V
Gallons per Hour670 @ 1' gal/hr
Includes1/2" Discharge And Is Equipped With A Standard 6' Power Cord
Inlet Connection TypeFNPT
Shaft Seal MaterialFluroelastomer
Max Pressure7.5 psi

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsCSA
