Features:
- Insulated rods marked with length
- Adjustable for length
- Measuring rods are solid
- Hardened and ground anvils
- Quick-reading figures
- 6-1/2" (165mm) long handle is available (124H)

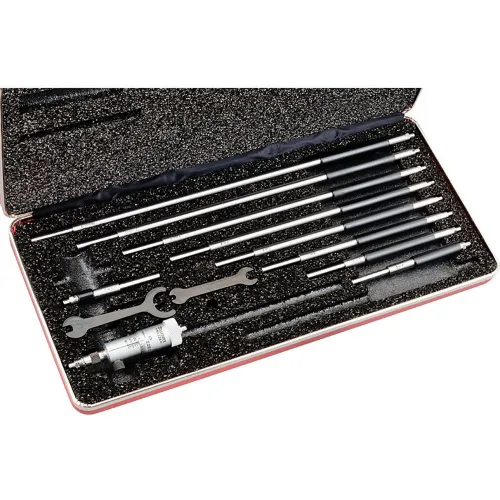

Starrett® Solid Rod Inside Micrometer Set, Plain Thimble, 2-12" Range, Pack of 10
Write a Review
|
Questions & Answers (0)
Product Description
The Starrett® 124 Solid -Rod Inside Micrometer Sets are the most popular inside micrometers because of their lightness, ease of use, and range. They are very useful for measuring inside diameters of cylinders and rings and measuring parallel surfaces. The desired range is obtained by assembling rods and spacing collars to the micrometer head. Measuring rods are provided with a shoulder that is set accurately in the micrometer head and locked in position. When assembling rods to the A and B heads, the reading line on the micrometer head should be lined up with the marking on each rod (except for the 50-75mm (2-3") rods). Rod diameters are approximately 6mm (1/4") on the A and B sizes, and approximately 8.5mm (11/32") on the C size. Each rod has individual length adjustment for the anvil by means of special wrenches furnished. 2-12" Range, .001" Grad, 10 Measuring Rods with Case.
Features:
Features:
PRICE
$669.00
1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Min Measurement | 2 |
| Max Measurement | 12 |
| Metric or Inch | Inch, Metric in |
| Resolution/Graduation | 0.001 |
| Range | 2-12 |
Product Details
| Digital | N |
| Type | Micrometer Set |
| Case | Yes |
| Measuring Face Material | Steel |
| Rotating Spindle | N |
| Accuracy | 0.005 IN °F |
| Data Output | N |
| Style | General Purpose |
| Case Type | Padded |
| Mechanical Or Digital | Mechanical |
| Digital Counter | N |
| Fraction Option | N |
| Anvil Shape | Curved |
| Description | Solid Rod Inside Micrometer Set |
| IP Rating | N |
| Manufacturers Part Number | 124BZ |
| Thimble Type | Plain |
| Brand | Starrett |
Compliance & Certifications
| Long Form Calibration Certificate Included | N |
