Kee Safety - A45-7 - Split Crossover, 1-1/4" Dia.

Kee Klamp® Fittings Wall Flange Side fixing for guardrailing and balustrading to walls, parapets, steps and ramps. The upright cannot drop through the socket. 7/16" diameter fixing holes. PA Warning: If the upright is required to pass through the fitting by machining out the base stop, the bottom fixing hole will be unusable.

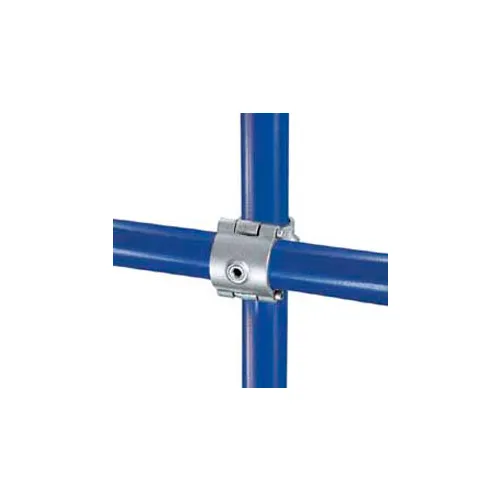

Kee Klamp® Fittings Crossover Designed to give a 90° offset crossover joint. Frequently used on safety railing, where, to reduce cost by minimizing the pipe cuts, a continuous horizontal rail is used. Pipe cannot be joined within this fitting. It may be also used to give intermediate levels on racks, etc, when horizontal ties between uprights across the section are not required.

Kee Klamp® Fittings Crossover Coupling This fitting is designed to give a 90 degree offset crossover. As there are two socket set screws in the sleeve, this Kee Klamp fitting can be used where a join is required in the horizontal pipe. For economy, it is possible to use a Type 45 in place of the 145, using the 145 only where a join in the pipe occurs. When calculating the cutting lengths for pipe, dimension 'G' should be added to give the pipe length for the upright.

Kee Klamp® Fittings Combination Socket Tee and Crossover Used on racking to join horizontal carrying rails to the upright, leaving the socket to take a horizontal tie across the section. For shelved racking it is usual to have the horizontal pipe outside the upright. On pallet racking it is preferable to have the carrying rails inside the upright.

Kee Klamp® Fittings Medium Flange This flange, with holes provided for countersunk flat head screw fixings only, is used on structures where the fixing required is positional only. Frequently used as a wall fixing bracket. 3/8"diameter fixing holes PA Warning: It is not recommended for use as a base flange to support guardrailing or balustrading.
