Intended Use:
Dual Technology (PDT) Sensor
Features:
Patented Dual Technology with PIR / Microphonics Detection, 360° Coverage, Push-Button Programmable, No Minimum Load Requirements, Adjustable Time Delay, 100 Hr Lamp Burn-in Timer, Green LED Indicator
Listings:
UL and CUL Listed
Construction:
This small yet powerful sensor provides line-of-sight PIR detection of small motion in a circular pattern, and combines overlapping Microphonics coverage for detection of occupants working in their cubical space.
Optics:
Patented Dual Technology with PIR / Microphonics Detection
Electrical:
The sensor is powered with 12 to 24 VAC/VDC and typically operates with a PP20 or MP20 Power Pack; enabling complete 20 Amp circuits to be controlled.
Installation:
Place the sensor along the entrance door wall to prevent it from viewing out into the hallway, ensuring the sensor can view the entire room from this position.
Share
Spec Sheet

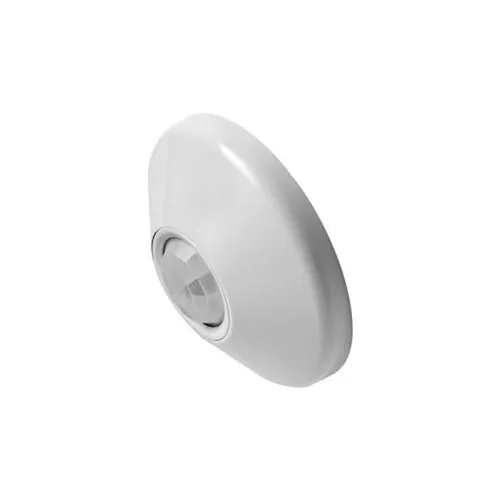

Lithonia CM PDT 9 Standard Range 360&176; Sensor - Ceiling Mount Dual Technology (Pdt)
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$145.95
1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 4.5 in |
| Depth | 2-1/2 in |
| Height | 4-1/2 in |
Product Details
| Mounting Location | Ceiling |
| Made in the USA | Yes |
| Package Quantity | 1 |
| Manufacturers Part Number | CM PDT 9 |
| Sensor | Standard Range 360 ° |
| Brand | Lithonia Lighting |
