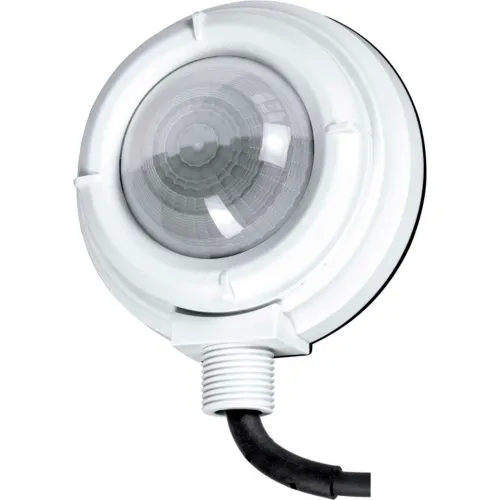

Hubbell WASP Fixture Mount Low-Temp, Watertight Occupancy Sensor, White

Intended Use: High Bay 360° Sensor Features: PIR Occupancy Detection, 360° Coverage, Up to 45 ft mounting, No minimum load requirement, Self-Contained Relay - No Power Pack needed, Adjustable Time Delay, 100 Hr Lamp Burn-in Timer, Green LED Indicator Listings: UL and CUL Listed Construction: The CMRB 6 sensor mounts directly to the end of a lighting fixture through an extended 1/2 inch chase nipple, and is ideal for individual on/off control of T5/T8 fluorescent lighting. Optics: PIR Occupancy Detection Electrical: The sensor is line powered and can switch line voltage. ...

Basic Operation: Whether factory or field installed, new installation or retrofit, Leviton fixture mounted sensors provide fast, easy installation and immediate energy savings by automatically activating lighting only during periods of occupancy. Reliable passive infrared (PIR) technology detects occupancy, and the variable time delay-up to 30 minutes-is user accessible without power, tools or disassembly, and allows the ideal setting based on application needs. Included with the sensor are lenses for high-bay and low-bay, allowing one unit to cover a variety of applications. The ...

Leviton's self-contained passive infrared ceiling occupancy sensor is the cost-effective choice for commercial and institutional installations, where installation of the recessed ceiling unit is difficult, inconvenient or costly. Available in 120V, 220V and 277V versions, the ODC0S-I is ideal for storage areas, small bathrooms, copy rooms, mop/sink closets or small spaces without wall switches. Sensor and switching relay in one unit 360 degrees field of view with approximately 530 sq. ft. of coverage when mounted at 8 ft. Adjustable Delayed OFF time setting between 20 seconds and 15 ...

Intended Use: Ceiling Mount Sensor Features: PIR Occupancy Detection, 360° Coverage, Push-Button Programmable, Adjustable Time Delay, 100 Hr Lamp Burn-in Timer, Green LED Indicator Listings: UL and CUL Listed Construction: Auto set-point calibration, Two selectable modes of operation, On/Off mode: Photocell has full control during periods of occupancy Optics: 360° Coverage Electrical: The sensor detects changes in the infrared energy given off by occupants as they move within the field-of-view. Installation: Mount to ceiling, adjust to max/min dim setting

Intended Use: Passive Infrared (PIR) Sensor Features: PIR Occupancy Detection, 360° Coverage, Push-Button Programmable, Adjustable Time Delay, 100 Hr Lamp Burn-in Timer, Green LED Indicator Listings: UL and CUL Listed Construction: Ideal for small rooms with drop ceilings and areas without obstructions, the CM 9 is a snap to install. Its light weight allows surface mounting to drop ceilings or a ceiling grid. Optics: PIR Occupancy Detection Electrical: The sensor is powered with 12 to 24 VAC/VDC and typically operates with a PP20 or MP20 Power Pack; enabling complete 20 Amp circuits ...
