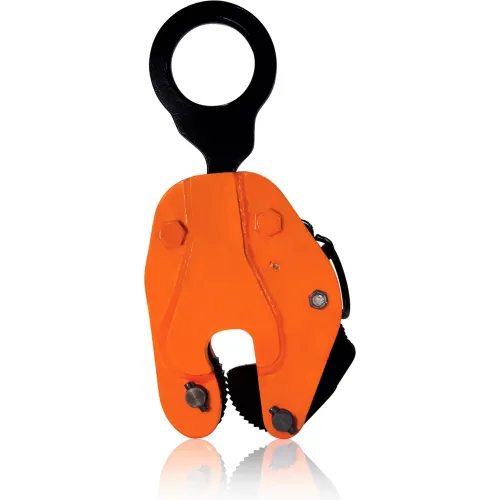

Renfroe Vertical Lifting, 90 Degree Turning Plate Clamp, Orange, Steel, 2000 Lbs Cap, 3/4" Opening

The Model JPA is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical to horizontal through a 180 degree arc. Incorporates a push button auxiliary lock. Permits side loading of lifting shackle to 90 degrees by derating clamp's rated capacity. Model JPA incorporates a pivoting shackle that permits side loading of the lifting shackle at 100 percent of rated capacity from vertical to 30 degrees, 75 percent of rated capacity between 30 and 45 degrees and 50 percent of rated capacity between 45 and 90 degrees. Made In The USA.

The Model LA is an ergonomic vertical lifting clamp capable of turning a single plate or member from horizontal to vertical to horizontal through a 180 degree arc. It incorporates a push button auxiliary lock. The "Lock-Open - Lock Closed" feature facilitates attaching and removing the clamp from the plate. Made In The USA.

For vertical lifting, transporting and turning of all steel plates with a hardness of max. 55 HRC. Please ask for special specifications. Features: Equipped with an extra hardened pivot and cam Cam is colored green for easy identification Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered Clamp is locked in closed as well as open position Lightweight design for easy handling Tough quality heavy duty welded shell body 0.75 TS-H Hard Vertical Plate Lifting Clamp with 0-.51 inch jaw opening & 1650 lbs Working ...

Features: Non-welded Construction. No Minimum Load Camming Stationary Jaw Automatically Returns to Preload Position Self Locking Jaw Closed Mechanism Self Locking Jaw Open Mechanism 0 – 180 Degree Turning Permissible Clamp can be mounted to the work piece without the need for the operator to put hands in the fall path of the work piece Designed with a 5 –1 Design Factor Criteria ASME B30.20 Operation Compliant ASME B30.BTH -1 Design Compliant Working Load Limit (WLL) Clearly and Legibly Marked on the Clamp Serial Number Clearly and Legibly Marked on the Clamp Materials of Manufacture ...

A vertical drum clamp can easily move and handle open or closed head loaded steel, plastic (with lip under drum head) and fiber drums. Allows quick, gentle loading into over packs and keeps drums upright during lift, reducing spills and injuries. Features durable construction for added strength and long life. Use in industrial applications for optimal results.
