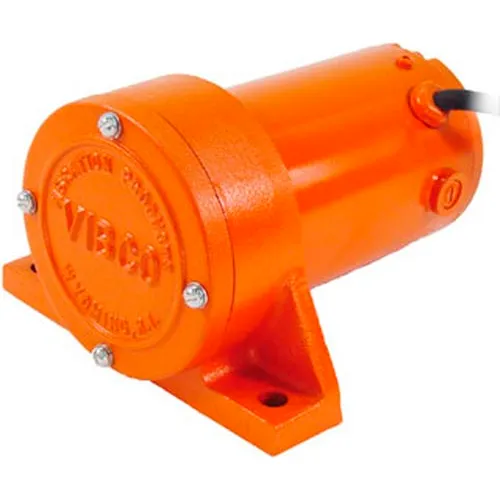

Adjustable Force & Frequency Electric Vibrator, consisting of a rugged, permanent magnet DC motor, and a SCR DC Speed Control. The control box comes complete with a combination ON - OFF Switch & Single Turn Speed Control Potentiometer, fuse, and a cord with a standard NEMA 5-15P 3-prong plug, ready to be connected to 110-120 VAC, 50/60 Hz, 1 PH. power. Adjustable speed 0 - 4000 Vibrations per Minute (VPM). Motor rated for continuous duty from 950 to 2500 VPM. Intermittent duty only at all other speeds. 100 lbs. of force maximum.
Vibco Adjustable Speed and Force Electric Vibrator - SCR-100
|
Questions & Answers (0)
Product Description
PRICE
$1,039.00
1
1
Free Shipping Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 6.75 in |
| Width | 6 in |
| Height | 4.25 in |
| Dimension C | 0.375 in |
| Dimension A | 5 in |
| Force Weight | 100 lbs |
| Dimension D | 5 in |
Product Details
| Amperage | 1.3 A |
| Series | SCR |
| Hertz | 50/60 Hz |
| Max Force @ 60Hz | 100 lbs |
| Adjustable Speed Option | Yes |
| Enclosure Type | Totally Enclosed |
| Voltage | 115/230 V |
| Material | Heavy Duty |
| Phase | 1 |
| Manufacturers Part Number | SCR-100 |
| Force Newtons | 445 N |
| Decibels | 68 |
| Brand | Vibco Vibrators |
