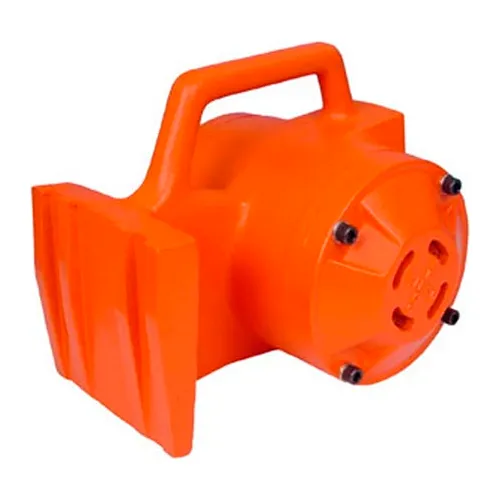

Vibco Heavy Duty Silent Pneumatic Turbine Vibrator - CCW-2500

Heavy Duty line of Silent Pneumatic Turbine Vibrators. High amplitude and force output. Built in muffler. Heavy duty ductile and cast iron construction. CCF used for permanent foot mount applications. 80 PSI max. operating pressure, 6000 VPM, 40 CFM, 2000 lbs. of force. Factory recommends filter-regulator for optimum life and performance.

BBS series are dual mount Silent Turbine Vibrators, designed for applications requiring small to medium amounts of vibration. No lubrication required. Threaded exhaust port allows for porting air to remote location if necessary. 80 PSI max. operating pressure, 10000 VPM, at 7 CFM, with 250 lbs of force. 70 dB. A filter regulator is recommended for optimum life & performance. Exhaust mufflers are available for quieter operation.

CC line of vibrators heavy duty, high amplitude and force outputs, built in muffler heavy duty ductile and cast iron construction. CCF used for permanent foot mount applications 80 PSI max operating pressure, 7200 VPM, 50 CFM, 7000 lbs of force. Factory recommended filter regulator for optimum life & performance.

FBS series Silent Turbine Vibrator, speed 15000 VPM, 5 CFM, at 60 PSI, with 30 lbs of force, built in exhaust muffler. Factory recommended filter regulator for optimum performance.

VS series Silent Pneumatic Turbine Vibrator. High Speed, quick starting version. Built in exhaust muffler. Cast iron housing standard (Aluminum available). 6800 VPM, 11 CFM, @ 60 PSI, with 600 lbs of force, continuous duty. Intermittent duty to 80 PSI maximum. No lubrication required Factory recommended filter regulator for optimum performance.
