The NIOSH 42 CFR Part 84 approved loosing fitting positive pressure respirator purifies ambient air from the shop and delivers filtered, breathable air to operator. The top features include an intelligent blower system with HEPA filter, integrated grind shield & side windows and an extra-large widescreen 12.5 Sq. Inch auto-darkening lens with our exclusive 4C® Lens technology.
Maximizing Field of View
The integrated clear grind shield and shade 5 side windows increase field of view in both the open and closed positions.
Industry Leading Optics:
- 4C® Lens Technology - Broadens the color range & hues which can be seen in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle
- Perfect 1/1/1/1 Optical Clarity - This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens
- Extra Large Viewing Area - The 12.5 square inch auto darkening lens provides a large field of view to increase versatility and operator control
Features:
- Maximizing Field of View - Integrated clear grind shield and IR 5 side window expand field of view to offer productivity and safety enhancements
- HEPA Filter - Multi-component filter system provides 99.97% particulate filtration at 0.3 microns
- Intelligent Blower - LED display, audible & vibratory alerts, automatic speed adjustments
- All Day Comfort - 4 Axis adjustable headgear evenly distribute weights and improves comfort
- Respiratory Protection Assigned Protection Factor: 25 APF
- Respiratory Protection ADF Viewing Area: 2-15/16" x 4-1/4" (75 x 108 mm)
- Respiratory Protection Control Type: Digital
- Respiratory Protection Headgear Type: Advanced Pivot
- Respiratory Protection Air Flow Low Speed: 180+ Ipm (6+ cfm) High Speed: 210+ Ipm (7.4+ cfm)
- Respiratory Protection Battery Charge Time: 3 Hours
- Respiratory Protection Battery Charges: 500
- Respiratory Protection Battery Life: 9 Hours
- Respiratory Protection Alarms: Audible & Vibratory alarms for low battery and filter life

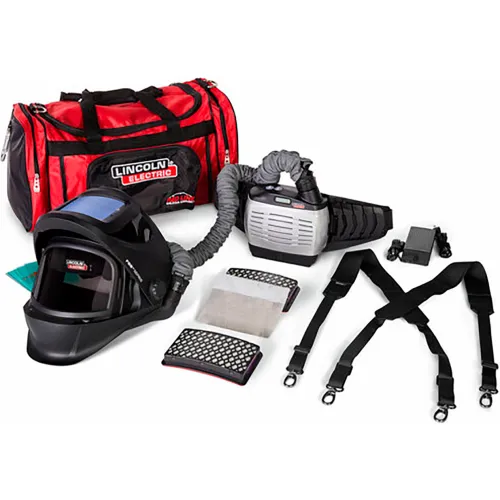

Includes:
- (1) Viking® 3250D FGS PAPR Welding Helmet
- (1) KP3944-1 Viking® PAPR Blower Unit
- KP5123-1 Padded Belt 29-52 in
- KP5124-1 Shoulder Straps
- KP5122-1 Hose with FR Cover
- KP3424-2 HEPA Filters
- KP3935-1 Pre-Filter
- KP3936-1 Spark Screen
- (1) KP3938-1 Extended Capacity Lithium Ion Battery
- KP3932-1 120V Battery Charger
- (1) Industrial Duffle Bag
- (7) KP3700-1 Outside Cover Lenses - FGS Series
- (7) KP3701-1 Inside Cover Lenses - FGS Series
- Instruction Manual
