ITEM #: WBB1789587

MPN #: PICOGLF6024120UL

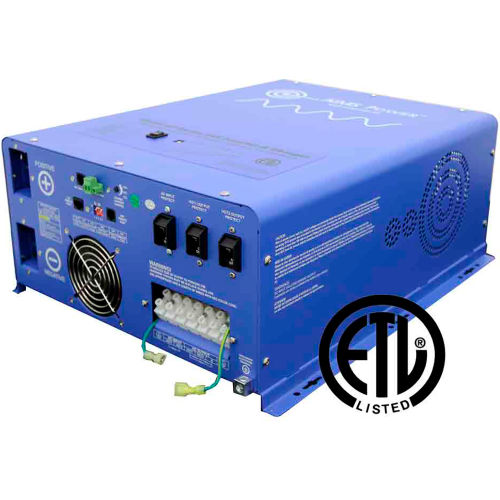

AIMS Power 6000 Watt Pure Sine 24 Volt Inverter Charger, PICOGLF6024120UL

|
Questions & Answers (0)
PRICE
$2,260.00
Usually ships in 1 to 4 days
The 6000 watt 24 volt low frequency AIMS Power inverter charger transforms DC (direct current) power, stored by batteries, into AC (alternating current) electricity that can be used to run your various tools and appliances. This inverter also has a built in AC-to-DC battery converter charger, which allows users to recharge their battery bank from an AC source such as a fuel-powered generator, shore power or a regular outlet at home. The built in battery charger features a seven type battery selector and 3 stage charging, for safely and effectively charging your battery source. Use this product for renewable solar, off-grid, mobile and emergency backup power applications anywhere that uses 110 or 120 volts of alternating current. This product also has auto frequency detection that allows users to operate at either 50 or 60 hertz.

Features:
  • 6000 watt low frequency inverter
  • 18000 watt surge for 20 seconds 300% surge capability
  • Battery Priority Selector
  • Terminal Block
  • Marine Coated and Protected
  • Multi Stage Smart charger 30 Amp
  • remote panel available
  • auto frequency
  • 10msec typical transfer time
  • optional 25W power save mode
  • 7 battery type settings for charger


Inverter Output Specifications:
  • Continuous Output Power: 6000 Watts
  • Surge Rating: 18000 Watts (20 Seconds)
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Nominal Efficiency: >88% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC


Input Specifications:
  • Nominal Input Voltage: 24.0Vdc
  • Minimum Start Voltage: 20.0Vdc
  • Low Battery Alarm: 21.0Vdc-22.0Vdc
  • Low battery Trip: 20.0Vdc-21.0Vdc
  • High Voltage Alarm: 32.0Vdc
  • Low battery Voltage Restart: 31.0Vdc
  • Idle Consumption: <52.5 Watts
  • Power Saver Mode Idle Consumption: <25 Watts


Charger Specifications:
  • Output voltage: Depends on battery Type
  • Charger Rate: 30A
  • Over Charge Protection Shutdown 31.4V
  • Selectable Charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four Stage Smart Charger


Transfer Switch Specifications:
  • 30 amp automatic transfer switch
  • 10 ms (max)


Dimensions
  • Unit Weight: 108 lbs.
  • Unit Size L x W x H: 19 x 16.5 x 8 inches
  • Shipping Weight: 113 lbs.
  • Shipping L x W x H 30.5 x 14.25 x 13.75 inches
