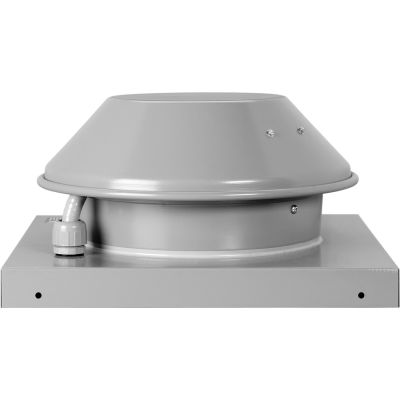

Fantech 4 or 5" Roof Mount (Curb) Centrifugal Direct Drive Ventilator REC 54, 115V, 1 PH, 117 CFM
The RE/REC Series of direct drive centrifugal fans provide an excellent solution for residential or commercial ventilation applications where the fan must be mounted on the exterior of the building. Two base styles are available: RE models with a flat base for direct flashing to the roof or REC models with flanged base for curb mounting. RE models can also be mounted on an exterior wall when roof access is not suitable.
Features:
The RE/REC Series of direct drive centrifugal fans provide an excellent solution for residential or commercial ventilation applications where the fan must be mounted on the exterior of the building. Two base styles are available: RE models with a flat base for direct flashing to the roof or REC models with flanged base for curb mounting. RE models can also be mounted on an exterior wall when roof access is not suitable.
Features:
- 100% speed controllable
- Suitable for airstream temperatures of up to 140° F
- Excellent heat dissipation for long motor life
- Built-in thermal overload protection with automatic reset
- Five-year warranty
- AMCA Air, AMCA Sound and cULus certified
Product Details
- Mounting Location Roof
- Number of Speeds Variable
- Amperage 0.18 A
- For Use With WC15, SCD5
- Drive Type Direct Drive
- Material Galvanized Steel
- Peak Fan Power Input 18.2 BHP
- Operating Temperature Up To 140° F
- RPM High 2,949 rpm
- Voltage 115 V
- Description Attic / Wall Mount Ventilator
- Speed Controllable Y
- CFM High 117 CFM
- Phase 1
- Watts 18.2 W
- Brand Fantech
- Warranty 5 yr
- Hertz 60 Hz
- Manufacturers Part Number REC 54
- Sones 3.5
Weights & Dimensions
- Width 6 in
- Fan Diameter 4 OR 5 in
- Length 7-1/2 in
- Base Height 1-1/2 in
- Height 7-1/2 in
- Base Length 15-1/2 in
- Weight 11 lbs
Compliance & Certifications
- Certifications AMCA Air, AMCA Sound, cULus
