Delta

Model # :WBB2115790

MPN #: 50-723T2

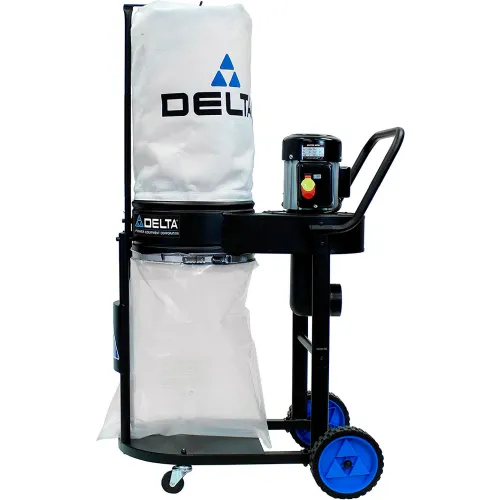

Delta 50-723T2 1HP 750CFM Dust Collector, Type 2

Product Description
  • The 50-723T2 includes motor and blower, support frame, 1 Micron Filtration Bag with Sewn-In Bag Ring, 6 mil plastic chip collection bag, (1) snap-in filter bag ring, (2) 4" intake ports, (2) swivel caster assemblies, two large 8" wheels, cord and plug.
  • Standard 1 micron filtration bag keeps your shop safer and cleaner
  • Sewn in, snap-in filter bag ring is faster, easier and eliminates the need for cam-over-lock style clamps
  • Powerful TEFC induction motor for long-lasting, smooth performance with protection from damaging dust
  • 6 mil plastic chip collection bag shows you when the bag needs emptying
  • Sturdy steel base with four easy-gliding wheels for moving from machine to machine or for storing out of the way
Specifications:
  • Motor: 1 HP max, 120/240V (Wired 120V), 60 Hz, 1 Phase
  • Maximum Static Pressure: 5.5" of water
  • Filter Bag Area: 10 sq. ft., .95 sq. m.
  • Chip Bag Area: 1.7 cu. ft.; 48 L Width: 19"
  • Max CFM: 750 CFM
  • Impeller Diameter: 9.5"
  • Standard Bag Filtration: 1 Micron
  • Length: 35"


PRICE
$699.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length35 in
Width19 in
Height56 in
Air Inlet4 in
Particle Size2 mic
Collection Bag Capacity1.7 ft³
1-Hose Connection Diameter4 in
Collection Bag Length43 in
Filter Bag/Canister Length43 in
Bag Diameter20 in
Impeller Diameter9-1/2 in

Product Details

Prewired Voltage120 V
Air Flow @ 4 Inches750 CFM
Phase1
Manufacturers Part Number50-723T2
Motor Horsepower1 HP
BrandDelta
Number of Air Inlets1
TypeDust Collection System
Static Pressure (Inches of Water)5.5 in
Remote ControlNo
Amperage15 A
Hertz60 Hz
Voltage120/240 V
Dust Collector TypeBag
Max Airflow750 CFM

Warranty

Warranty5 yr
