AirSpade® 5000 Utility harnesses the power of compressed air by incorporating the high-performance, proprietary AirSpade® Supersonic Nozzle. Fabricated from non-sparking bronze, the nozzle generates a laser-like air jet that moves at twice the speed of sound for faster, more effective digging.
Rugged, lightweight aluminum handle features full-size grip opening to accommodate linesman's gloves. Comfortable plastic grip provides thermal protection and a degree of electrical insulation. Dead-man trigger ensures safe operation and trigger guard prevents accidental activation. Integral pressure gauge ensures optimal digging performance. 3/4'' NPT compressed air inlet equipped with 3/4'' swivel type Universal Coupler.

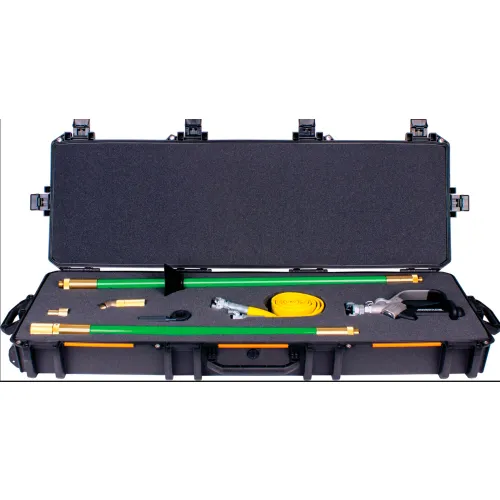

Screw-on, electrically insulated fiberglass barrel rated to 300kV protects operators from buried, high-voltage utility lines. Brass barrel sleeves and connectors minimize sparking potential. Adjustable, rubber dirt shield deflects soil and debris. Kit also includes 225kV rated, insulated 3 Ft fiberglass extension with brass coupler, 45-degree non-sparking brass angled adaptor, 1'' x 10' lightweight air hose, and heavy-duty, locking storage case. Detachable, auxiliary handle included.
Features:
- 225kV rated, insulated 3 Ft. fiberglass extension with brass coupler
- 300kV rated, insulated 4 Ft. fiberglass barrel with adjustable, rubber dirt shield
- AS 5000 Handle with swivel-type Universal Coupler
- 105 cfm non-sparking, bronze Supersonic Nozzle
- Detachable, auxiliary handle
- 45-degree non-sparking brass angled adaptor
- 1'' ID x 10' lightweight air hose with Universal Couplers
- Heavy-duty, locking storage case
- (1) AS 5000 Handle with swivel-type Universal Coupler
- (1) 300kV rated, insulated 4 Ft. fiberglass barrel with dirt shield
- (1) 225kV rated, insulated 3 Ft. fiberglass extension with brass coupler
- (1) 105 cfm non-sparking, bronze Supersonic Nozzle
- (1) Detachable, auxiliary handle
- (1) 45-degree non-sparking brass angled adaptor
- (1) 1'' ID x 10' Lightweight air hose with Universal Couplers
- (1) Heavy-duty, locking storage case
- (1) Operations Manual
