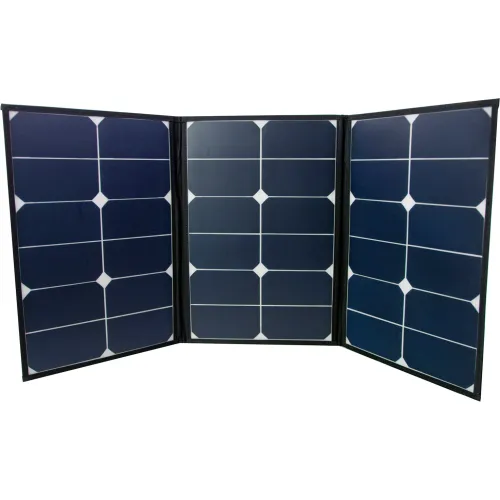

Featuring AIMS Power foldable and portable solar panel, made with high quality monocrystalline solar cells and a water resistant rugged case. This portable solar power panel quickly folds and unfolds into a compact carrying case for easy set-up and storage. On the front of the carrying case, there is a zipper pocket to store a small charge controller. The foldable panel also includes a built in 6 foot charge controller wire allowing for quick connection to various size charge controllers.The carrying case is water resistant, includes a comfortable rubber handle and secures using side release plastic buckles.Backed by a 10 year warranty and weighing in at under 3 pounds, this portable solar panel is a must for every remote application needing power.
Features:
- Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest
- Built in solar charge controller cable 6ft
- Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, bikes and back packs
- Portable and easily adjusts to the optimum sunlight angle
- Accordion style fold up case
- Weather resistant
- Appropriate for outdoor use
- Durable and rugged case with convenient side zipper pocket to store wires and charge controller
- Lightweight and super thin allowing for easy storage and set up
- Bypass diode minimizes the power drop when shaded
- Modules are independently tested to ensure conformance with certification and regulatory standards
- Manufacturing facility certified to ISO 9001 quality management system standards
- Panels capable of +/- 3% power efficiency than rated
- 5 year warranty, 10 year 80% output
Specifications:
- High performance: light transmittance up to 93%
- Cell Efficiency: 22.3% (one of the highest)
- Module Efficiency: 19.2% (one of the highest)
- Maximum Power: 60W
- Tolerance Wattage (e.g. +/- 5%): +/- 3W
- Maximum System Voltage: 600V DC (UL)
- Max Power Voltage (Vmp): 19.8 V
- Max Power Current (Imp): 3 A
- Open-Circuit Voltage (Voc): 23.7 V
- Short-Circuit Current (Isc): 3.6 A
- Maximum Fuse Rating: 10 A
- Fire Safety Class: Class A
- Temperature Range: -40°F to 185°F
- Number of cells: 2 x 6 x 3
- Charge controller PV Wire: 10 AWG with spade connector easily fits into various charge controllers
- Temperature Coefficients ⁰C: ISC(%): +2.6, Voc(%): -50.6, Prm(%): -.38, Im(%): +2.2, Vm(%): -60.8
- Dimensions: Expanded 33" X 15.8" X 0.20". Folded 11.22" x 15.85" x .6"
- Weight: 2.85 lbs
- Certifications: CE, ETL, TUV and RoHS
