The 60 V MAX 1-3/4 in. SDS MAX brushless combination hammer is a LightDriver, high-performance rotary hammer that is powered by a brushless motor and durable German engineered mechanisms. The brushless combination rotary hammer delivers 10.5 joules of impact energy for fast drilling and chipping, even in the hardest concrete. Constant-speed electronics allow the Tool to maintain speed under load, while the patented e-clutch® system protects the user in bind-up situations by stopping the rotation of the bit. The LightDriver design makes it ideally suited for high-performance, horizontal serial drilling for #5 - #8 rebar, dry coring up to 4 in., chipping in any upper to lower wall and bushing applications. The shocks active vibration control® system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. It is equipped with wireless Tool control™, which allows the user to link the Tool to the DCV585 60 V MAX dust extractor for remote extractor activation. This Tool comes tag ready™ so users and companies can attach the DEWALT tag™ and track its location virtually anywhere via the Tool connect™ app.

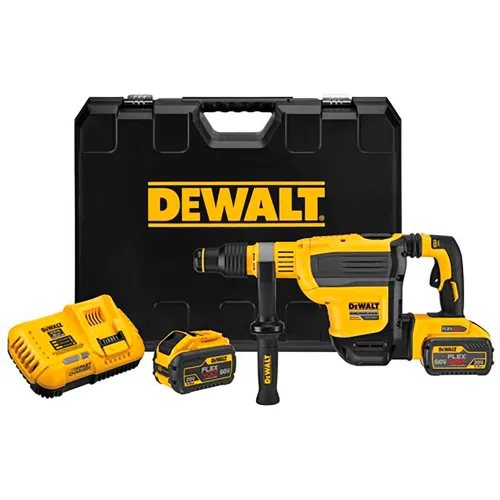

DeWalt® 60V MAX 1-3/4" SDS MAX Brushless Combination Rotary Hammer Kit
Questions & Answers (0)
Specifications
Weights & Dimensions
| Length | 20.7 |
| Width | 9.09 in |
| Weight | 15 lbs |
| Chuck Size | 1-3/4 in |
Product Details
| Battery Type | Lithium-Ion |
| Max RPM | 380 rpm |
| Type | Cordless |
| Color | Yellow |
| Kit | Kit |
| Style | Rotary Hammer |
| Voltage | 60 V |
| Rate Of Impact (BPM) | 1450 - 2900 |
| Manufacturers Part Number | DCH614X2 |
| BPM | 2900 |
| Brand | DeWalt |
| Speed | 0 - 380 ft/min |
