For over 50 years, Big Joe® products have improved worker productivity and efficiency. Power propelled, power lift truck is the logical step-up from a manual truck, as it outperforms two to three operators with manual jacks. 24V AC high-torque drive and lift motors. Multi-function handle allows operation with either hand and features thumb throttle, lift/lower controls, safety reversing switch and horn. Automatic dead-man emergency brake cuts power when handle released. Includes 85Ah AGM (absorbed gas mat) maintenance free batteries, battery charger, combination battery discharge/hour meter gauge and key switch. Rolls smoothly on polyurethane steer and load wheels. Features 27"W x 45"L forks, 3-¼" lowered height and 7-½" raised height. 4000 lb. capacity model has 0.9KW drive and 2.2KW lift motors. Designed to handle slopes up to 10% when Unloaded, 6% when Loaded. 1 Year Limited Warranty.

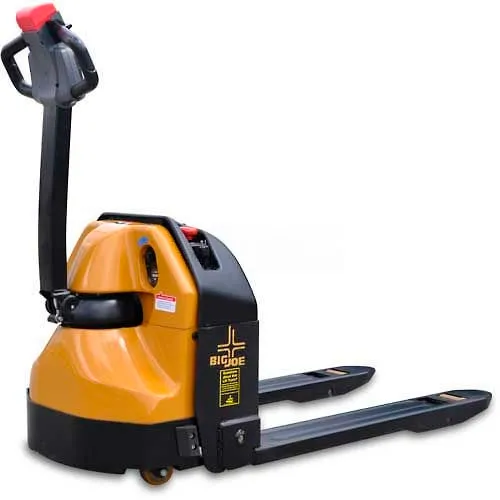

Big Joe® Electric Pallet Jack, 4000 lb. Capacity, 27"W x 45"L Forks
|
Questions & Answers (0)
Product Description
PRICE
$4,749.00
1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 64 in |
| Width | 27 in |
| Height | 47 in |
| Lowered Height | 3-1/4 in |
| Raised Height | 7-1/2 in |
| Weight Capacity | 4000 lbs |
| Weight | 650 lbs |
| Fork Length | 45 in |
| Fork Width | 5-7/8 in |
| Distance Between Forks | 15-1/2 in |
| Fork Thickness | 3-1/4 in |
| Distance Across Forks | 27 in |
| Travel Speed | 3.5 Loaded; 3.6 Unloaded mph |
| Turning Radius | 57-1/2 ° |
Product Details
| Assembly Required | No |
| Duty Cycle | 4 Hours |
| Gradeability | 10% Unloaded; 6% Loaded |
| Charger | 10 amp 120V |
| Material | Steel |
| Operation | Electric |
| Manufacturers Part Number | D40 |
| Brand | Big Joe |
| Type | Self Propelled |
| Color | Yellow |
| Lift Type | Powered |
| Wheel Type | 1 Drive, 2 Load, 2 Steer |
| Style | Standard Forks |
| Duty Cycle per Charge | 4 |
| Handle Style | Ergonomic |
| Batteries | (2) AGM 12V/85AH |
| Lower Type | Powered |
Warranty
| Warranty | 1 yr |
