- Accepts an 11" blade.
- Maximum capacity of 2.75" round tube at 90°.
- Cuts thin-, medium-, or thick-walled pipe, as well as tubing, extrusions, and solid bar stock.
- Miters 45° right and 90° left, perfect for slotting applications.
- You can switch between 2 operating speeds, 60 and 120 rpm, depending on your application.
- 3 hp motor requires 220-volt 3-phase power to run the direct-drive blade.
- Design adds semi-automatic technology to our CS-275M cold saw, one of the best manual production saws available.
- Heavy-duty cast iron head minimizes vibrations to give you high-quality cuts with smooth edges.
- Head features all-metal gears that are ground and hardened for long life.
- Backlash adjustment lets you reduce play in the gears to maintain tight tolerances throughout many years of use.
- American-style self-centering vise keeps the material in the right position to the blade for perfect cuts.
- Pneumatic or air-powered vise spares you the trouble of locking the material in by hand.
- You can operate this circular cold saw in manual mode (pull down the blade head by hand) or semi-automatic mode.
- Easy to use: just put your material in the vise and push the foot pedal to clamp it. The blade will automatically start, lower, and cut.
- Blade will shut off and the head automatically rises back to the top once the cut is complete, eliminating the effort of manually returning it.
- Stop rodconveniently allows you to cut repeatable lengths.
- Rigid cast iron base reduces vibrations for accurate cutting and makes both the blades and the saw itself last longer.
- Sturdy folded steel stand stabilizes this circular saw and adds to its structural strength.
- Flood coolant system lubricates the blade for clean cutting and mirror-smooth edges.
- Integrated coolant system saves you money by extending the lifespan of cold saw blades.
- We stock replacement parts at our Wisconsin headquarters so we can ship them out quickly.
- This chop saw comes covered by a 1-year parts warranty.
- Lifetime technical support by phone means you can call our team of metalworking experts any time you need help.

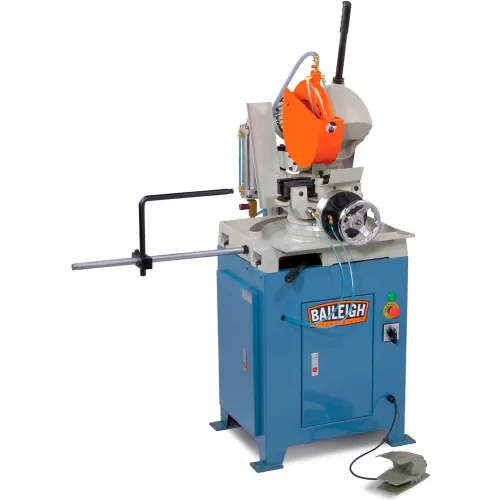

Baileigh Industrial Chop Saw, 3.0 HP / 1.5 HP, 3 Phase, 220V, CS-275SA
Write a Review
|
Questions & Answers (0)
Product Description
This semi-automatic, 3 phase cold saw will save time while making large amounts of pristine cuts. Built to last, this Baileigh chop saw offers a cast iron head and base, a pneumatic vise, and a flood coolant system.
PRICE
$10,499.00
1
1
Free Shipping Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Max Vise Opening | 4 in |
| Cutting Capacity | Round and Square @ 0 Deg. 2-3/4, Round and Square @ 45 Deg. 2-3/16IN² in |
| Blade Diameter | 11 in |
Product Details
| Type | Semi-Automatic |
| Number of Speeds | 2 |
| Amperage | 7 A |
| Round Cutting Capacity | 2.75" |
| Style | Semi-Automatic |
| Rectangular Cutting Capacity | 2.75" x 2.9" |
| Motor Voltage | 220V V |
| Country of Origin | Import |
| Phase | 3 |
| Manufacturers Part Number | BA9-1002447 |
| Motor Horsepower | 3.0 HP / 1.5 HP HP |
| Blade Speeds | 60, 120 rpm |
| Brand | Baileigh Industrial |
