Little Giant® VCL-24ULS Condensate Removal 553201 - 115V, 270 GPH At 1'

The 230 Volt VCMX-20UL is designed for condensate removal where gravity drainage is not available for air conditioning or high efficiency gas furnaces systems. It features an oil resistant tank, stainless steel motor shaft and flexible installation options. Features a built-in check valve. Optional External Overflow Safety Switch B215777 with 72" cable sold separately. ¼-Turn check valve (allows servicing without removal of tubing; eliminates water spills) Patent-Pending Cooling Design (improved cooling increases pump life) Rubber Feet (absorbs vibration on hard surface installations. ...

three piece design oilable, repairable pump - sleeve bearing design, flexible spring design coupler, mechanical seal. Max. working pressure 125 psi, max. temperature 225 degrees F; 250 degrees F with optional high temperature seal. Made in the USA.

permanently lubricated maintenance free circulator, dry-motor design, 25% more efficient than competition. Carbon/silicon caarbide seal on a stainless steel shaft sleeve for long life and rugged operation. Max. working pressure 150 psig, max. operating temperature 225 degrees F.

bearing assembly for PD & 60 Series Pumps: PD-38S, PD38T, PD39S, PD39T, PD40S, PD40T, 60-15S, 60-15T, 60-16S, 60-16T, 60-17S, 60-17T, 60-18S, 60-18T, 60-19S, 60-19T, 60-20S, 650-20T, 60-21S, 60-21T, 60-1½A, 60-2A.

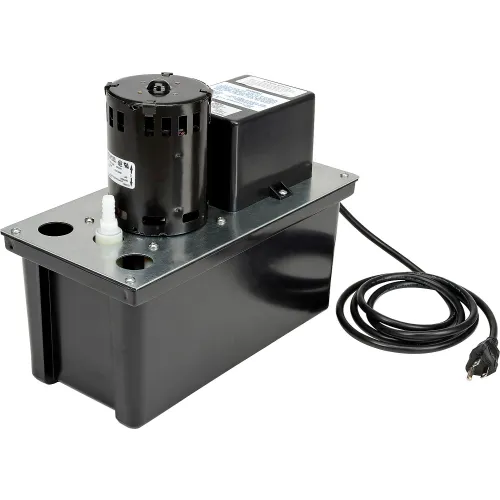

Made with an ABS tank, volute and switch cover with a polypropylene impeller and galvanized steel tank cover for long lasting durability. Offers large, one gallon tank condensate pump with 3/8" O.D. copper discharge tube. Includes safety switch that can be wired to shut down air conditioner or wired to alarm to warn of possible tank overflow. Motor offers automatic operation and thermal overload protection. Snap-action switch, safety switch and includes 6' cord. Rated for high efficiency gas furnaces. ULA/CSA listed. GPM is 7.32 . HP is 1/5 . Voltage is 115 . Phase is 1 . Amp is 3.5 . 1 ...
