Test Indicators

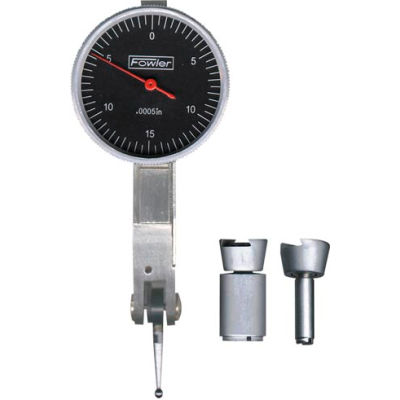

Features: Graduation .0005" Dial reading 0-15-0Jeweled bearing Carbide contact point Two measuring directions Anti magnetic body Supplied with two clamps: 5/32" DIA and 3/8" DIA Optional accessory: styli

Features: Absolute encoding Origin setting Preset value Comes with IP65 rating Measures in inch/mm Remote readout LCD display 48" cable Data output port Carbide contact tip AC power port

Features: Graduation .0001' Dial Reading 0-40-0 Ceramic bearing Anti magnetic carbide contact point Two measuring directions Supplied with one clamp: 3/8" DIA Optional accessory: styli

Features: Graduation .001" Meet ASME B89.1.10M-2001 Supplied with limit pointers and bezel clamp Optional accessory: backs, contact points

The Starrett® 196 Universal Back Plunger Dial Indicator features graduations to .001" and 0.02mm that handle by far the majority of jobs. Shank diameter is 1/4" (6.3mm). Antimagnetic models are also available - (inch reading) 196A6Z and 196B6. For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model. Then the contact should be brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to ...
