Sloan

Model # :WB236693

MPN #: 3325402

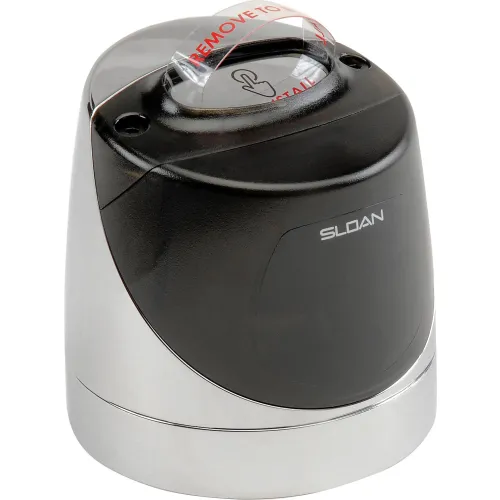

Sloan® G2 Optima Plus® RESS-U, Urinal Battery Powered Flushometer 1.1/1.6GPF

Product Description
Sloan® G2 Optima Plus® RESS-U, Battery Powered Flushometer, 1.0 gpf/3.8 Lpf AND 1.5 gpf/5.7 Lpf

Battery Powered, Sensor Operated G2® Model Retrofit Conversion Kit for Exposed Urinal Flushometers. Sloan G2 Optima Plus® Flushometers activate via multilobular sensor detection to provide the ultimate in sanitary protection and automatic operation. A battery powered infrared sensor sets the flushing mechanism after the user is detected and completes the flush when the user steps away. Touchless, sensor operation eliminates the need for user contact to help control the spread of infectious diseases. The G2 Optima Plus Flushometer is provided with an Override Button to allow a "courtesy flush" for individual user comfort. Sloan installed batteries speed installation and provide years of metered flushing to control the use of water and energy. Batteries can be changed without turning off the water.

Quiet, Exposed, OPTIMA Plus®, Battery Powered, Sensor Operated Urinal Flushometer Retrofit Conversion Kit for Sloan Royal®. Sloan® and Regal® Flushometers with the following features:

  • PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Flex Tube Diaphragm designed for improved life and reduced maintenance
  • ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic "No Hands" operation
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
  • Latching Solenoid Operator
  • Engineered Metal Cover with replaceable Lens Window
  • Courtesy Flush™ Override Button
  • Four (4) Size AA Batteries factory installed
  • "Low Battery" Flashing LED
  • Infrared Sensor Range Adjustment Screw
  • Initial Set-up Range Indicator Light (first 10 minutes)
  • Chrome Plated Metal Handle Cap
  • Installation Tools provided
  • Diaphragm to be molded from PERMEX™ Rubber Compound for Chloramine resistance
  • PRICE
    $489.95

    1
    1
    Ships within 1 Business Day
    Add or Change Zip Code(s)
    Easy online or call-in returns. Read return policy

    Weights & Dimensions

    Weight4 lbs
    Spud Size3/4 in

    Product Details

    Gallons per Flush1.1/1.6 gal/flush
    For Use WithUrinal
    MaterialBrass
    Manufacturers Part Number3325402
    PSI15-100 psi
    Low Battery IndicatorYes
    Spud PlacementTop
    Sensor TypeActive Infrared
    BrandSloan
    Battery Type(4) AA Alkaline
    TypeUrinal
    Control CircuitSolid State, 6 VDC Input, 8 Second Arming Delay, 24 Hour Sentinel Flush
    Battery Life3 Years, 4,000 Flushes/Month
    ColorSilver
    SeriesG2 Optima Plus RESS-U
    Liters per Flush4.2/6
    Sentinel FlushOnce Every 24 Hours After the Last Flush
    Matching Connecting Included15-100
    Operating Pressure15 - 100
    Flush TypeSensor
    Vandal ResistantNo
    Sensor RangeNominal 15"-30", Adjustable ± 8"

    Warranty

    Warranty36 mo

    Compliance & Certifications

    ADA CompliantYes
