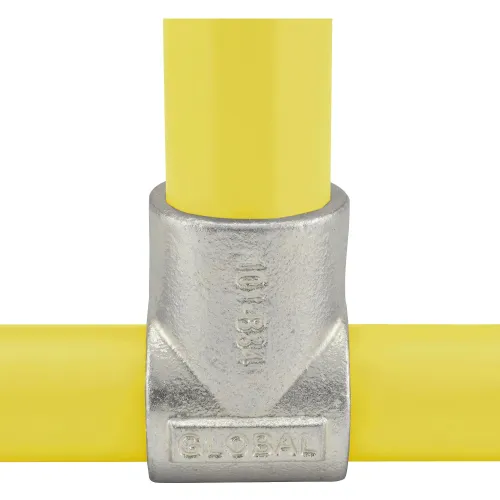

Global Industrial™ Pipe Fitting - Single Socket Tee 1-1/2" Dia.

Kee Klamp® Fittings Split Three Socket Cross The unique "Hinge and Pin" system of this fitting, enables existing structures to be easily extended without the need for dismantling. This fitting has been designed to tie an upright with horizontal pipes in three directions, all at 90° to the upright. The upright passes through the fitting.

Kee Klamp® Fittings Split Four Socket Cross The unique "Hinge and Pin" system of this fitting enables existing structures to be easily extended without the need for dismantling. This fitting is most frequently used in multiple upright structures to tie a center upright with horizontal pipes in four directions. The upright passes through the fitting.

Global Pipe Fitting - Rail Flange 1-1/2" Diameter Rail Flange Pipe Fitting is commonly used to mount hand rail, guard rail or other pipe-based structures to the floor. Durably constructed of galvanized iron to provide maximum corrosion resistance and long lasting durability. Rail flange includes two hardened set screws in the vertical socket for greater side load stability. For safe installation, flange fixing holes should be in line with the applied load. For 1-1/2" diameter pipe. Anchor hole is slightly larger than ½" diameter.

Kee Klamp® Fittings Rail Support This fitting, with holes provided for countersunk flat head screw fixings only, is designed to carry handrails along walls or to fix structures back to walls. The pipe passes through the fitting and cannot be joined within the fitting. Type 70 is also used to attach toeboards to the base of guardrail uprights. 5/16" diameter fixing holes. PA Warning: These fittings are not to be used as base flanges for full height guardrails.

Global Pipe Fitting - Crossover 1-1/4" Diameter Crossover Pipe Fitting utilizes continuous horizontal rail instead of cut pipe for cost savings. Used in railings, safety barriers and racks, crossover pipe fittings may also give intermediate rails when horizontal ties between uprights is not required. Durably constructed with galvanized iron for corrosion resistance and low long term maintenance. Fitting locks onto 1-1/4" diameter pipe with hardened set screws (included) for secure connection. Anchor hole is slightly larger than ½" diameter.
