Harrington's TCR Series air hoists offer the benefit of lifting heavier loads while maintaining low headroom and a continuous duty cycle. These hoist are best suited for foundries, assembly lines, construction sites and many other demanding applications. Features include unlimited duty cycle, spring-loaded vane motor, high strength cast iron housing, heavy duty brake and a built-in adjustable load limiter to stop lifting when load is over rated capacity. All Hoist are provided with test certificate verifying hoist has been factory load tested to 125% of rated capacity, in accordance to ASME B30.16.

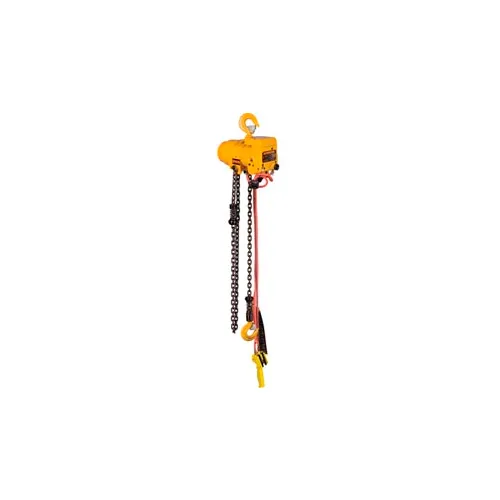

Harrington TCR Air Hoist w/ Pendant Control - 2 ton, 10' Lift
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$8,609.00
1
1
Ships in 17 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight Capacity | 4000 lbs |
| Weight | 128 lbs |
| Control Cord Length | 6 ft |
| Air Supply Hose Minimum Size | 1/2" |
| Head Room | 21-13/16 in |
| Lift | 10 ft |
| Lift Speed | 11 ft/min |
Product Details
| Assembly Required | Unassembled |
| Type | Chain Hoist w/ Pendent Control |
| Color | Yellow |
| Series | TCR |
| Air Lubrication | 2-3 cc/min |
| Air Inlet Port | 1/2" NPT |
| Air Supply Requirement | 60-90 PSI |
| Material | Cast Iron Body |
| Manufacturers Part Number | TCR2000P2-10 |
| Brand | Harrington |
