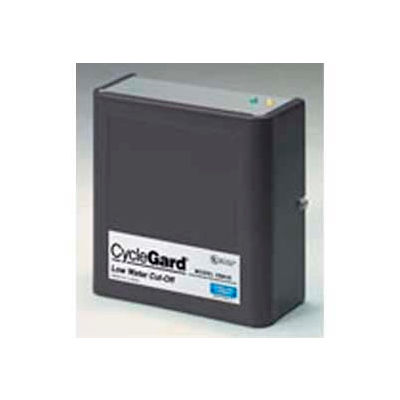

Cyclegard® CG400 Series CG450-2060 Low Water Cut-Off, Auto Reset, Direct Boiler Mounting, 120V
Features:
Click for Spec Sheet
Click For Instructions
Features:
- Intermittent Level Test Maximum Protection for Foaming Boilers
- 15 Second Burner Off Delay
- 30 Second Burner On Delay
- Automatic Reset
- Low Water Indicating Light
- Direct Boiler Mounting - Eliminates Blowdowns Burner circuit contacts open after 15 second delay in a low water condition. Delay prevents short cycling caused by momentary fluctuations in the boiler water level. Automatically reactivates burner circuit 30 seconds after water reaches the probe, allowing optional water feeder to raise water level above the probe. Intermittent Level Test (ILT) feature provides maximum boiler protection by removing power from the burner circuit at set intervals. Models ending in "1090" perform the ILT every 10 minutes for 90 seconds.
- Models ending in "1560" perform the ILT every 15 minutes for 60 seconds, Models ending in "2060" perform the ILT every 20 minutes for 60 seconds, Models ending in "2090" perform the ILT every 20 minutes for 90 seconds
- Made in the USA.
Product Specifications
- BRANDHydrolevel Company
- WIDTH INCHES5-1/2
- DEPTH INCHES2-3/8
- HEIGHT INCHES5-4/5
- VOLTAGE120
- WEIGHT LBS2.85
- COLORBlack
- TYPESteam
- LIMITED WARRANTY YEARS1
- MANUFACTURER'S PART NUMBERCG450-2060
- POWER CONSUMPTION-VOLT AMPS4.2
- SWITCHING CAPACITY5.8 Full Load Amps, 34.8 Locked Rotor Amps
- MAX. STEAM PRESSURE PSI15
- SWITCH CONTACTSSPDT
- INCLUDES15 Sec. Off Delay, 30 Sec. On Delay, Auto Reset, Low Water Indicating Light
- PERFORMS INTERMITTENT LEVEL TESTevery 20 minutes for 60 seconds
