Price: $2,356.00
Customers Also Viewed

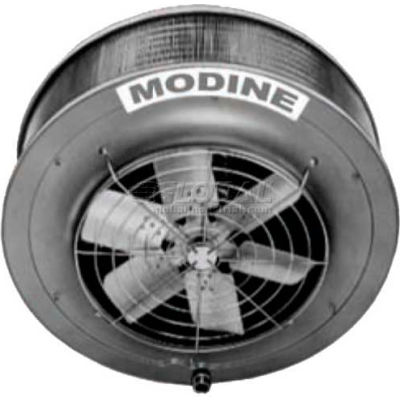

Vertical delivery unit heaters are ideal for heating buildings with high ceilings or areas that require the heater to be mounted above obstructions such as crane ways. Selection from a variety of heat throw patterns is made easy by choosing from four types of air deflectors. Heat throw patterns range from a high-velocity narrow jet to a gentle-velocity broad based cone of heated air. CSA certified. MADE IN U.S.A. 1 Year Limited Warranty.
Click below to view the following:
Product Specifications
- BRANDModine
- HEIGHT INCHES14-1/8
- DIAMETER INCHES34-3/4
- MAXIMUM MOUNTING HEIGHT FEET29
- COLORGray / Green
- CONSTRUCTIONSteel
- INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR161000
- OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR123220
- CFM HIGH2945
- FINAL AIR TEMPERATURE °F (STEAM)115
- FINAL AIR TEMPERATURE °F (HOT WATER)101
- VOLTAGE120
- PHASE1
- HORSEPOWER1/3
- HEAT THROW FEET--
- WATER FLOW (GPM)12.8
- POWER CORD TYPEElectric Junction Box
- APPLICATIONAreas With High Ceilings Or Mounted Above Obstructions
- INCLUDESElectric Junction Box, Outlet Fan Guard, Copper Tubing
- TYPEVertical
- LISTING, RATING, CERTIFICATIONCSA Certified
- LIMITED WARRANTY YEARS1
- MANUFACTURER PART NUMBERV161SB06SA
- HEAT SPREAD FEET21
- AMPS HIGH6.1
There are no questions for this product.
See More Questions & Answers
$1,908.00
$2,708.00
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
Modine Vertical Explosion Proof Unit Heater V161SB06SA, 161000 BTU, 2945 CFM, 115V
