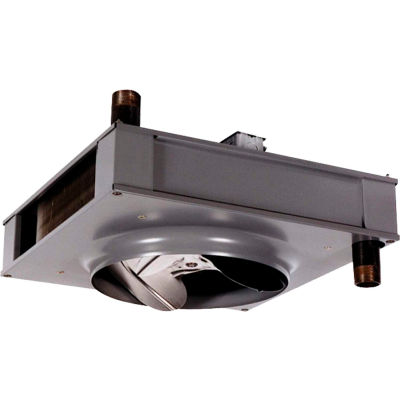

Beacon/Morris® Vertical Hydronic Unit Heater, 156200 BTU - VB200

Rollover image to zoom in

Click image to enlarge

See all 38 items in product family

Beacon/Morris® Vertical Hydronic Unit Heater, 156200 BTU - VB200

Item #: WBB1591760

Sold By: globalindustrial.com

Usually ships in 7 to 10 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 1,011.00
Product Information
Customer Review
Product Q&A
Beacon/Morris® Vertical Hydronic Unit Heater, 156200 BTU - VB200

200,000 BTU vertical hydronic unit heater, approved for water/steam commercial/industrial applications, 20 gauge steel casing, rectangular 3 or 4 sided single pass, multi circuit seamless copper tubing coils with aluminum fins mechanically bonded, coils submersion tested to 375 psi, field convertible for low outlet.

Documents

Documents are in PDF format

Product Specifications

    • BRANDBeacon Morris®
    • LENGTH INCHES40
    • WIDTH INCHES40
    • HEIGHT INCHES17
    • FAN DIAMETER INCHES19-3/4
    • MAXIMUM MOUNTING HEIGHT FEET--
    • WEIGHT LBS86
    • COLORGray
    • ASSEMBLYAssembled
    • CONSTRUCTIONSteel
    • INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR210200
    • OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR156200
    • CFM HIGH3200
    • RPM1100
    • OUTLET VELOCITY FPM1495
    • FINAL AIR TEMPERATURE °F (HOT WATER)105
    • FINAL AIR TEMPERATURE °F (STEAM)118
    • VOLTAGE120
    • PHASE1
    • HORSEPOWER1/4
    • HEAT THROW FEET--
    • WATER FLOW (GPM)32.2
    • TYPEVertical
    • APPROVALETL, ETLc
    • LIMITED WARRANTY YEARS1
    • MANUFACTURER'S PART NUMBERVB200
    • HEAT SPREAD FEET32
    • SQUARE FOOT (EDR) EQUIVALENCE OF DIRECT RADIATION838
    • AMPS HIGH3.6
    • CONDENSATE LBS PER HOUR208
    • PRESSURE DROP FT./H205.02
