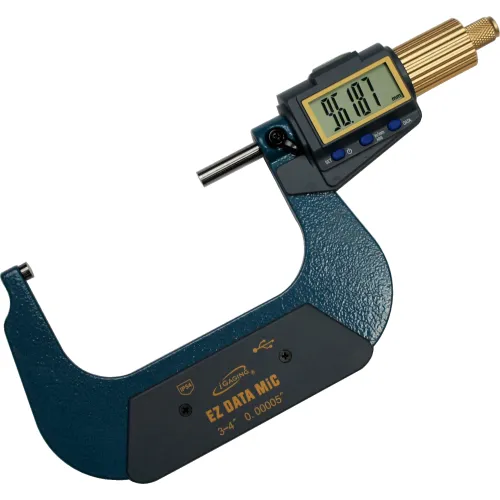

iGAGING Digital Micrometer w/ Alloy Gold Anodized Friction Thimble & 4" Max Range

iGAGING® IP54 LARGE DISPLAY DIGITAL MICROMETER Features: IP54 protective rating: Moisture and dust resistance Range: 0-1"/25mm Accuracy: 0.00015"/0.003mm X-Large LCD display Criterion A for ESD Inch/Metric conversion Resolution:0.00005"/0.001 mm Absolute/Incremental setting DATA output button for easy operation (Data output kit needed) All metal ratchet stop SPC/USB data output Battery: 3V CR2032 included Supplied in protective case

The Mahr Micromar 40 EWR (4157011) combines precision measurement with IP65 dust and water protection. Range of 0-1"/25mm with 0.001mm/0.00005" resolution and 2μm accuracy. MarConnect bidirectional data interface supports USB and Digimatic output for SPC integration. High-contrast display with reference system retains zero position. Carbide-tipped spindle and anvil ensure durability. Quick drive with integrated ratchet provides consistent force. Heat-insulated frame minimizes thermal errors. Includes battery, test certificate, and case.

The Mahr Micromar 40 ER (4157010) provides precision outside measurement with 0-1"/25mm range and 0.001mm/0.00005" resolution. High-contrast digital display ensures clear readings. Hardened stainless steel spindle with carbide-tipped anvil and spindle delivers durability and wear resistance. Rapid drive thimble speeds measurement cycles. Ratchet integrated in thimble provides consistent measuring force. Heat-insulated lacquered steel frame reduces thermal errors. ISO 3611 data interface. Includes battery, test certificate, and case.

The iGAGING digital micrometer uses the absolute encoding technology in which the sensor memorizes and traces an absolute origin zero position. Quickly measure with super high precision. Features: Lever activated - fully opens and closes in less than one second! linear moving sensor provides accurate and reliable measurements IP65 coolant proof Measuring range-0-1"/0-25mm Carbide tipped spindle Resolution: 0.00005"/0.001mm Accuracy: 0.00015"/0.003mm Fixed thimble SPC/USB data output Ball attachment included Case included

The Mahr Micromar 40 EWRi-S (4157141) features non-rotating blade anvils for measuring narrow grooves, slots, and recesses. Range of 0-1"/25mm with 0.001mm/0.00005" resolution. IP65 protection for production environments. Integrated wireless transmission eliminates cables for SPC data collection. High-contrast display with reference system. Quick drive sliding spindle for rapid positioning without workpiece damage. DIN 863-3 compliant. Ideal for keyway and O-ring groove measurement. Includes test certificate and case. Features: With blade-type measuring surfaces Stainless spindle is ...
