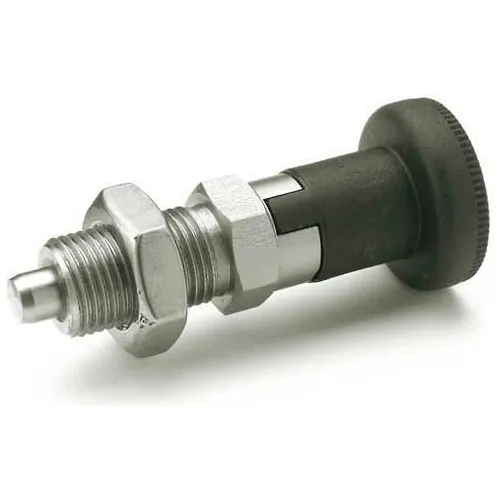

J.W. Winco Indexing Plunger w/ Knob Lock-Out & Nut SS 8.0x21.0N Pressure M12x1.5 Thread 6x6mm Pin
Write a Review
|
Questions & Answers (0)
Product Description
Indexing plungers GN 617-NI are standard units for a wide range of indexing mechanisms. Type G or GK with threaded plunger ends are for applications where a special knob to customer's request or where their own design is required, or for such cases where the spindle is linked directly to an operating mechanism. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. For indexing plungers in stainless steel, without head, see GN 613-NI. And for indexing plungers in stainless steel, with rest position, see GN 617.NI.
FeaturesThreaded body: Stainless steel European standard No. 1.4305 American standard 303 series) Plunger pin: Stainless steel, chemically nickel plated Knob--plastic version: Matte black glass fiber reinforced nylon plastic, not removable Knob--stainless steel version: European Standard No. 1.4305 Lock nut: Stainless steel, DIN 439/ISO 4035
Features
PRICE
$23.50
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 61 mm |
| Pin Length | 6 mm in |
| Pin Diameter | 6 mm in |
| Thread Size | M12 x 1.5 in |
| Thread Length | 20 mm in |
| Knob Diameter | 25 mm in |
Product Details
| Nose Material | Stainless Steel |
| Type | With Plastic Knob |
| Body Material | Stainless Steel |
| Description | Indexing Plunger |
| Manufacturers Part Number | 617.1-6-M12X1.5-AK-NI |
| Lock Out | Yes |
| End Pressure Start | 8.0 N |
| End Pressure Full | 21.0 N |
| Lock Nut | Yes |
| Brand | J.W. Winco |
