REED Instruments

Model # :WBB3161526

MPN #: R2320

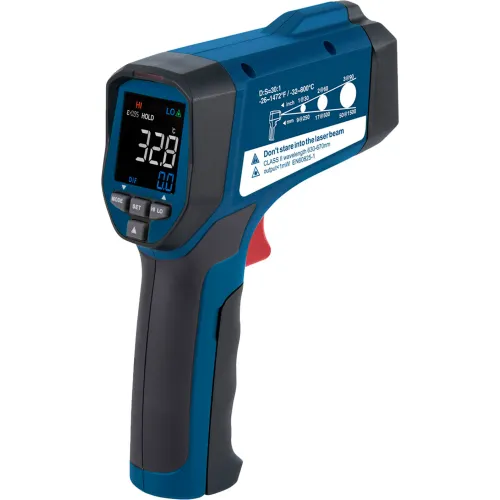

REED Infrared Thermometer, 9V Battery, Blue

Product Description
This infrared thermometer features a 30:1 distance to spot ratio and is capable of measuring temperatures up to 1472°F (800°C). The R2320 has the ability to track maximum, minimum, average and differential readings and includes a bright color display for ease of use in both sunlight and dimly lit environments. Tri-color LEDs quickly indicate when temperatures are within set parameters (green), above (red) or below (blue).

Features:
  • Built-in laser pointer identifies target area
  • User selectable °F or °C
  • 30:1 Distance to Spot size ratio
  • Bright color display (EBTN)
  • Digitally adjustable emissivity
  • Max, Min, Average and Differential readings
  • Audible (beep) and visual (tri-color LED) user adjustable alarms
  • Internal memory stores up to 5 pre-set high & low alarms and 5 emissivity settings
  • Trigger lock for continuous monitoring
  • Low battery indication and auto shut off
  • Temperature Range: -26 to 1472°F (-32 to 800°C)
  • Resolution: 0.1°F (0.1°C)
  • Optical Resolution (D:S): 30:1
  • Spectral Response: 8 to 14µm
  • Emissivity: 0.1 to 1.0 (Adjustable)
  • Response Time: 250ms
  • Laser Type: Class II
  • Battery Life: Approx. 10 hours (with continuous use, backlight on)
  • Operating Temperature: 32 to 122°F (0 to 50°C)
  • Storage Temperature: -4 to 140°F (-20 to 60°C)
  • Operating Humidity Range: 10 to 90%
  • Maximum Operating Altitude: 6561' (2000m)
  • Maximum Storage Altitude: 39370' (12000m)
Includes:
  • Infrared Thermometer
  • Carrying Case
  • Battery
Applications:
  • Verify mechanical (bearings, motors) or electrical (circuit breaker boxes) equipment
  • Calibration and control of heater and oven temperatures
  • Monitoring materials in processes involving heating and/or cooling
  • Quality control monitoring
  • Research and development applications
  • Automotive diagnostics
  • Conduct HVAC/R energy audits


PRICE
$169.95

1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length2 in
Width5 in
Height7 in
Weight0.7

Product Details

Battery Type9 V
TypeInfrared Thermometer
Package IncludesInfrared Thermometer, Carrying Case, Battery
ColorBlue
Power Source9V Battery
DescriptionInfrared Thermometer
Package Quantity1
Manufacturers Part NumberR2320
Batteries9V
Case IncludedYes
BrandREED Instruments

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsCE, RoHS
