JET

Model # :WBB3169392

MPN #: JT9-698120-4

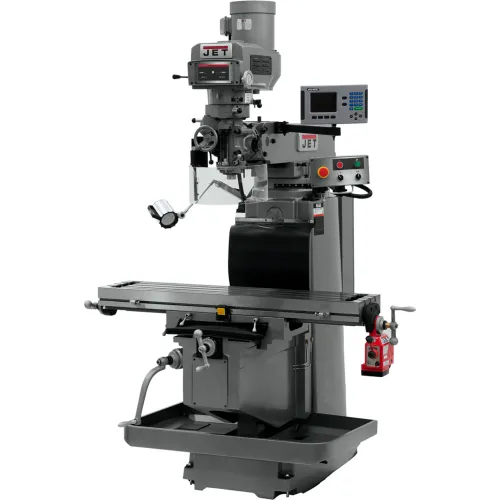

JET® JTM-1254RVS Milling Machine w/ Acu-Rite 203 3X (Q) DRO & X-Axis Powerfeed, 5 HP, 230/460V

Product Description

The JET® JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12" x 54" Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication every 180 minutes and quick nut spindle feed along with the Certified Meehanite® castings, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET® Two Year Warranty with products CSA/CUS Certified.

Features:
  • Adjustable gibs throughout
  • Dual locks on all moveable surfaces
  • Heavy-duty spindle brake
  • Precision bored and honed milling head
  • Precision hardened and ground ways and table
  • Spindle Brake for rapid stopping of the spindle
  • Three Precision ground t-slots
  • Three-stage power downfeed with automatic stop
  • Two 115V outlets on electrical box for Powerfeeds only


PRICE
$35,425.00

1
1
Ships in 12 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length92-1/8
Width79-7/8 in
Height104-1/4 in
Weight3969 lbs
Table Size (L x W)12 x 54 in
Collet Capacity1/8 - 1 in
Quill Diameter4-1/8 in
Table Longitudinal Travel33-7/8 in
Table Cross Travel15-1/3 in

Product Details

PowerfeedX-Axis
Number of Spindle SpeedsVariable
Style TypeVariable Speed R8
Motor Voltage230/460 V
DROAcu-Rite 203
Range of Spindle Speeds"80 - 3,800" rpm
Phase3
Manufacturers Part NumberJT9-698120-4
Prewired230
Motor Horsepower5 HP
BrandJET

Warranty

Warranty2 yr
