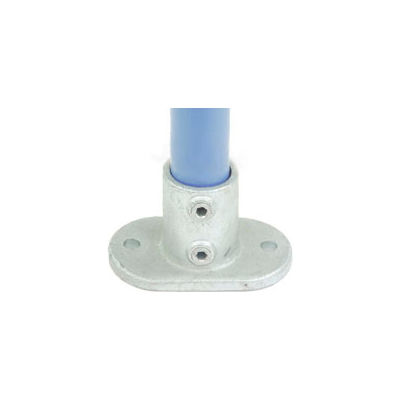

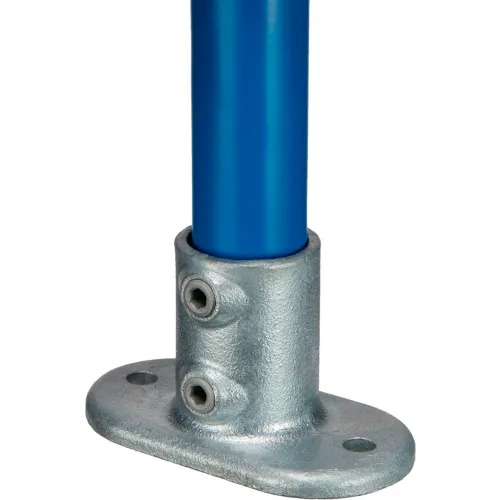

Kee Safety - 62-7 - Kee Klamp Rail Flange, 1-1/4" Dia.

Kee Klamp® Fittings Offset Rail Wall Flange The Type 265 fitting is designed for palm fixing guardrailing and balustrading to walls, parapets steps and ramps. The fitting has been designed with an offset barrel to enable clearance of overhangs and cappings.

Kee Klamp® Fittings Medium Flange This flange, with holes provided for countersunk flat head screw fixings only, is used on structures where the fixing required is positional only. Frequently used as a wall fixing bracket. 1/4" diameter fixing holes PA Warning: It is not recommended for use as a base flange to support guardrailing or balustrading.

Kee Klamp® Fittings Rail Support This fitting, with holes provided for countersunk flat head screw fixings only, is designed to carry handrails along walls or to fix structures back to walls. The pipe passes through the fitting and cannot be joined within the fitting. Type 70 is also used to attach toeboards to the base of guardrail uprights. 5/16" diameter fixing holes. PA Warning: These fittings are not to be used as base flanges for full height guardrails.

Kee Klamp® Fittings Female Single Swivel Socket Member One part of a combination fitting. The Type F50, in size 4, has only one ear while Type F50, in sizes 5 through 9, has two ears. The distance between the ears on sizes 5 through 9 is 12.70mm or 1/2 inch. 3/8" diameter bolt hole.

Kee Klamp® Fittings Standard Vertical Railing Base This fitting is designed for fixing guardrailing and balustrading to walls, parapets, steps and ramps. The upright cannot drop through the socket. Access to the top fixing hole is restricted by the position of the flange to the barrel. When selecting a hexagon head bolt or similar bolt fixing, the maximum length of the bolt including the head must not exceed 1".
