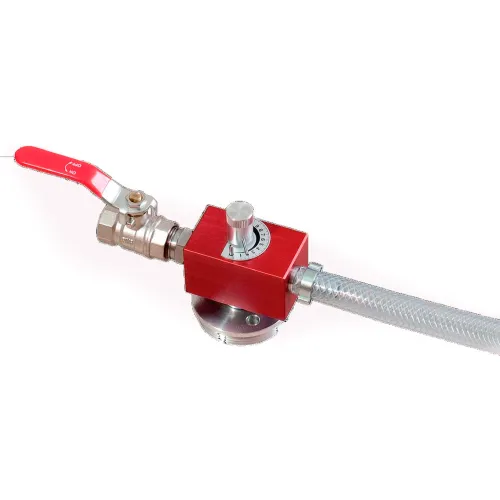

Action Pump Liquid Coolant Mixer CMX1 - 0-11% Quick Set
Introducing the world's most advanced Coolant Mixers that are virtually maintenance free, highly accurate and provide easy & fast adjustment. Coolant / Liquid Mixers are widely used in Industry for mixing liquid coolant concentrate with water for supply to machines. These also find applications in workshops & garages for mixing water with detergents, antifreeze etc. Traditionally, the Coolant Mixers are designed either with a Needle Valve or using a set of mixing jets. Both these designs have several flaws such as cumbersome & time consuming adjustment, too many parts, prone to blockage, high chance of loosing the mixing jets which need to be stored separately etc. The compact construction & minimal parts makes them easy to install & highly reliable. Lightweight Aluminum body Driven by pressure from water supply Includes full flow Brass Ball valve & also fitted with 2 back flow preventers 0 to 11% mixing ratio, ideal for Metal Working Fluids Adjustment of mixing ratio is variable & controlled through a simple turn of the knob Inbuilt Suction Tube & 2" bung that fits directly onto 55 gal (205 liter) Coolant Drums
Introducing the world's most advanced Coolant Mixers that are virtually maintenance free, highly accurate and provide easy & fast adjustment. Coolant / Liquid Mixers are widely used in Industry for mixing liquid coolant concentrate with water for supply to machines. These also find applications in workshops & garages for mixing water with detergents, antifreeze etc. Traditionally, the Coolant Mixers are designed either with a Needle Valve or using a set of mixing jets. Both these designs have several flaws such as cumbersome & time consuming adjustment, too many parts, prone to blockage, high chance of loosing the mixing jets which need to be stored separately etc. The compact construction & minimal parts makes them easy to install & highly reliable. Lightweight Aluminum body Driven by pressure from water supply Includes full flow Brass Ball valve & also fitted with 2 back flow preventers 0 to 11% mixing ratio, ideal for Metal Working Fluids Adjustment of mixing ratio is variable & controlled through a simple turn of the knob Inbuilt Suction Tube & 2" bung that fits directly onto 55 gal (205 liter) Coolant Drums
Weights & Dimensions
- Discharge Spout Diameter 0.75 in
- Thread 2 NPS (Male) in
- Suction Tube Dimension 35 in
- Width 6 in
- Diameter 3/4 in
- Length 37 in
- Height 3 in
- Weight 3 lbs
Product Details
- Assembly Required Assembled
- Mixing Ratio 0 - 11%
- Dispensing Rate 4.83 GPM
- Temperature Range 40 - 140 °F
- Type Rotary
- Brand Action Pump
- Material Aluminum, Stainless Steel, Brass, PVC, Nitrile, Nylon
- Style 15, 30 or 55 Gallon
- Power Water Powered
- Manufacturers Part Number CMX1
