- Simple direct coupling reduces installation and commissioning time while improving reliability by eliminating damper linkages
- Robust 140 lb-in (16 Nm) torque rating
- Rotation range 0 to 90° in 5° increments, mechanically limited to 93°
- Fits 3/8 to 3/4 (10 to 20 mm) round shaft, 3/8 to 5/8 (10 to 16 mm) square shaft; 1 (25.4 mm) diameter jackshaft with M9000-154 adapter
- On-off, floating and proportional control inputs meet the needs of most applications
- Output position feedback provides simple closed-loop control with accurate position sensing
- Master/slave operation allows synchronized control for two actuators stacked for tandem applications - doubles rated torque output
- Electronic stall detection ensures higher reliability by deactivating the actuator motor when a stall condition is detected
- Jumper selectable DC 0(2).10 V or DC0(4).20 mA, proportional control
- Zero and span adjustment (HGx models) allows sequential operation of dampers from a single input signal of DC 0(2).10 V, DC 0(4).20 V or DC 0(4).20 mA
- Jumper-selectable rotation direction and manual gear release simplify installation, setup, and field adjustments
- 2-SPDT optional auxiliary switches
- 1/2 NPT threaded housing provides easy connection for electrical fittings
- Manual gear release simplifies damper /valve setup and commissioning
- -4 to 122°F (-20 to 50°C) ambient temperature range
- Rated for 60,000 full stroke cycles
- UL Listed, CSA Certified, CE Mark

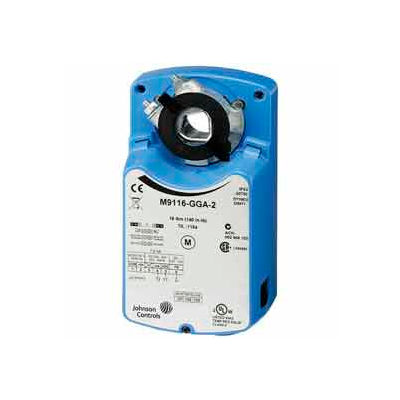

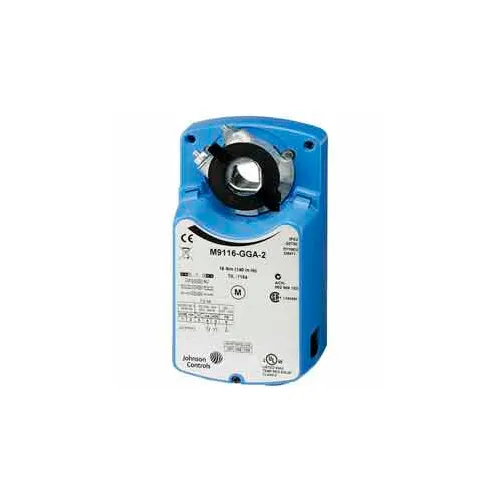

Johnson Controls Damper Actuator - M9116-GGA-2
Write a Review
|
Questions & Answers (0)
Product Description
Features:
PRICE
$619.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Torque | 140 lb-in (16 nm ) |
Product Details
| Temperature Control Range | -4 to 122 °F |
| Type | DC 0(2) - 10 V, DC 0(4) - 20 MA, Proportional |
| Power Requirements | AC 24 V 50/60 Hz DC 24V |
| TIMING | 70 - 115 sec timing |
| Brand | Johnson Controls |
Warranty
| Warranty | 1 yr |
