- 8 speeds from 70 to 2,000 rpm.
- 2 hp motor runs on 220-volt single-phase power, great for shops with limited power.
- No assembly required.
- Comes with a factory-installed Mitutoyo DRO (digital readout) for making precise cuts.
- Capable of making metric and standard threads.
- Quick-change 4-way tool post saves you time and hassle.
- All movement of the machining carriage rides on precision ground and hardened slideways.
- This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter.
- We use the best iron castings in the industry to support the ways and maintain high accuracy over many years of use.
- Comes standard with:
- 3-jaw chuck.
- Headstock chuck guard with automatic safety switch.
- Steady rest and follow rest.
- Emergency foot brake.
- Flood coolant system (with backsplash guard) to prolong machine life.
- Halogen work light.
- Covered by a 1-year parts warranty.
- We stock replacement parts at our Wisconsin headquarters so we can ship them directly to you.
- You can count on lifetime technical support by phone from our team of experienced metalworkers.

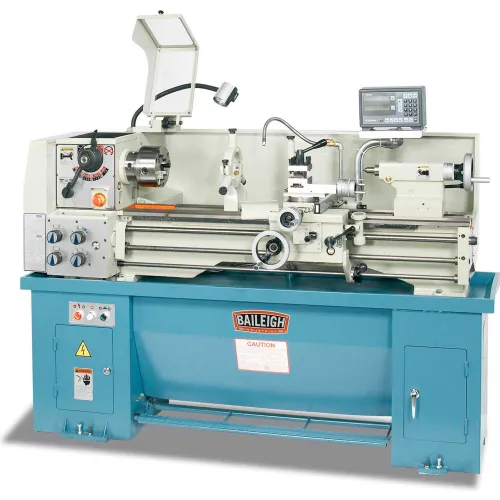

Baileigh Industrial Metal Lathe 220V, Single Phase 2 HP 13" Swing, 39" Length, PL-1340
Write a Review
|
Questions & Answers (0)
Product Description
Equipped with a Mitutoyo DRO, quick-change tool post, and cast iron base, this compact gear-head metal lathe is one of the most rigid in its class.
PRICE
$20,839.00
1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 60 |
| Width | 33 in |
| Height | 50 in |
| Weight Capacity | 4400 lbs |
| Distance Between Centers | 40 in |
| Spindle Bore | 1-1/2 in |
| Compound Slide Travel | 3 in |
| Max Lift of Beam | 2.5 in |
| Swing Over Bed | 13 in |
| Cross Slide Travel | 6.29 in |
Product Details
| No Load Speed | 3600 RPM |
| Spindle Mount | MT5 |
| Style | Lathe |
| Motor Voltage | 220 V |
| Country of Origin | Import |
| DRO | Mititoyo |
| Phase | 1 |
| Manufacturers Part Number | BA9-1006057 |
| Motor Horsepower | 2 HP |
| Collet Closer | No |
| Brand | Baileigh Industrial |
