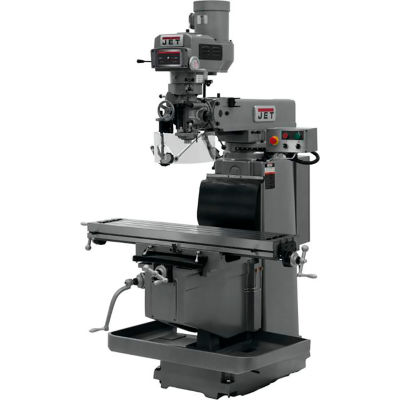

Jet JTM-1254RVS with 3-Axis ACU-RITE G-2 MILLPOWER CNC

Jet JTM-1254RVS with 3-Axis ACU-RITE G-2 MILLPOWER CNC

Item #: WBB2321831

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$47,164.29 up to 19% OFF

Price: $37,999.00

$6,333.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $37,999.00 or save 5% on purchase.

Quantity

JTM-1254RVS with 3-Axis ACU-RITE G-2 MILLPOWER CNC

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty

Features:
  • CNC Vertical Milling Machine Package JTM-1254RVS
  • Features of the ACU-RITE MILLPWR G2 CNC Package
  • Certified Meehanite® Castings
  • Precision bored and honed milling head
  • High precision Class 7 spindle bearings
  • Quick Spindle Feed Nut
  • Features of the ACU-RITE MILLPWR G2 CONTROLLER
  • USB + Ethernet compatible
  • Simplified navigation that eliminates multiple menu screens
  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • 1 GHz Celeron® M processor
  • Expanded tool library and Datum offsets
  • Program preview provides a graphical representation prior to operation
  • Program size limit increased by 90% to 9,999 steps
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
  • Mirror/Repeat/Rotate/Explode/Merge, easily manipulate, explode and merge part programs to save time and reduce program steps
  • Menu-prompted Conversational programming, easily create part programs, edit, reverse, change, delete and copy/move steps - follow the menu prompts and let MILLPWR G2 do the rest
  • Built-in Calculator, perform standard, trig and geometry calculations and transfer them directly into part programs
  • Custom Pockets and Islands utilize the new optimized path and ramp feed features
  • Circles including the Pocket, Frame, Ring and Helix incorporate the new ramp feed feature
  • May be used automatically or manually for ultimate shop versatility
  • Available offline software
  • Estimated runtime feature
  • Three Precision ground t-slots
  • Turcite B on X & Y Axis
  • Adjustable gibs throughout
  • CSA/CUS: Following strict guidelines and electrical requirements, these JET Mills are CSA/CUS certified
  • Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
  • Two 115V outlets on electrical box for Powerfeeds only


Product Specifications

  • DESCRIPTIONJTM-1254RVS with 3-Axis ACU-RITE G-2 MILLPOWER CNC
  • RANGE OF SPINDLE SPEEDS (RPM)80 - 3,800
  • SPINDLE TAPERR-8
  • TABLE SIZE INCHES12 x 54
  • WEIGHT LBS3696
  • BRANDJET®
  • LENGTH INCHES 104-1/4
  • DRO3-AXIS ACU-RITE MILLPWR® G2
  • POWERFEEDX, Y & Z-Axis
  • LIMITED WARRANTY2 Years
  • STYLECNC
  • Distance Spindle to Column (Max.) (In.)27-3/4
  • Distance Spindle to Column (Min.) (In.)7-1/2
  • MAX DISTANCE SPINDLE TO TABLE (IN)23
  • COLUMN WIDTH (IN.)14-1/4
  • SADDLE WIDTH (IN.)25-5/8
  • QUILL DIAMETER (IN.)4-1/8
  • WIDTH INCHES79-7/8
  • HEAD MOVEMENT (DEG.)90°R & L 45° F & B
  • TABLE LONGITUDINAL TRAVEL (IN.)33-7/8
  • HEIGHT INCHES92-1/8
  • TABLE CROSS TRAVEL (IN.)15-1/3
  • WORK TABLE WEIGHT CAPACITY (LBS.)925
  • T-SLOTS CENTERS (IN.)2-1/2
  • TRAVEL OF RAM (IN.)25
  • TRAVEL OF KNEE (IN.)19-1/4
  • QUILL DOWN FEED RATES (IPR).0015 - .003 - .006
  • MANUFACTURERS PART NUMBER691944
  • SPINDLE TRAVEL (IN.)5
  • MOTOR PHASEThree
  • MOTOR HORSEPOWER5
  • MOTOR VOLTAGE230/460
