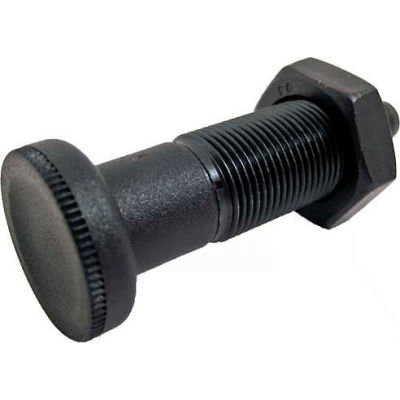

Indexing Plunger w/ Full Thread & Knob Lock Nut Black 7.0x17.0N Pressure M10x1 Thread 5x5mm Pin

Indexing Plunger w/ Full Thread & Knob Lock Nut Black 7.0x17.0N Pressure M10x1 Thread 5x5mm Pin

Item #: WBB1033036

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $9.80

Save $0.49 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Indexing Plunger w/ Full Thread & Knob Lock Nut Black 7.0x17.0N Pressure M10x1 Thread 5x5mm Pin

Indexing plungers GN 613 are a low cost alternative with reduced dimensions. Indexing plungers with threaded spindles are for applications where a special knob to customer's request or own design is required or for such cases where the spindle is linked directly to an operating mechanism. For an additional cost, a special installation tool for GN 613.1 is available. Two slots are provided in the upper end of the body which are accessible with the knob in its retracted position. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F.

Features
  • Threaded body: Steel, black oxide finish
  • Plunger pin: Steel, hardened
  • Knob: Matte black glass fiber reinforced nylon plastic, not removable
  • Lock nut: Steel, black oxide finish, DIN 439/ISO 4035


  • Product Specifications

    • BRANDJ.W. Winco
    • END PRESSURE START7.0 N
    • NOSE CONSTRUCTIONSteel
    • LOCK NUTYes
    • END PRESSURE FULL17.0 N
    • LOCK-OUTNo
    • DESCRIPTIONIndexing Plunger
    • BODY CONSTRUCTIONBlack Oxide Steel
    • KNOB DIAMETER21 mm
    • PIN LENGTH5 mm
    • PIN DIAMETER5 mm
    • THREAD SIZEM10 x 1.0
    • TYPEWith Full Thread & Plastic Knob
    • THREAD LENGTH22 mm
    • OVERALL LENGTH (OAL)45 mm
