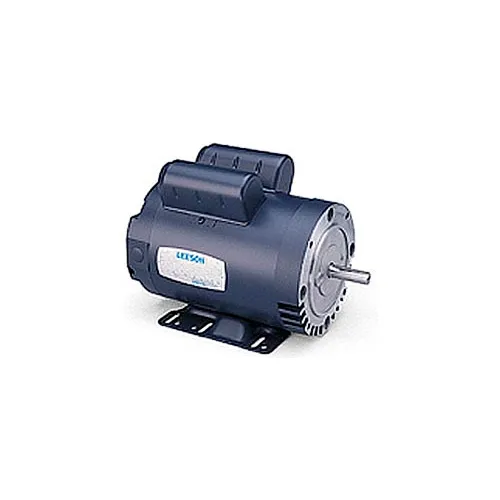

Leeson Motors - 3HP, 208-230V, 1740RPM, DP, Rigid Mount, 1.15 S.F.

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures. Features include: Durable rolled steel frame Class B insulation High-quality ball bearings Easy-to-read nameplate Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation. UL Recognized Component Listing and CSA approval. Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

Baldor-Reliance Motor, 3HP,3450RPM,1PH,60HZ,56C,3532LC,TEFC,F1 Features: Ball bearing design 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts Manual thermal overload located in the conduit box UL and CSA recognized component approval 200°C copper windings. Typical Applications: Pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and coupled mount designs.

General Purpose, Capacitor Start-Capacitor Run Motor: 1.5HP, 1740 RPM, Drip-Proof (DP) Enclosure, 56H Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 13.4/6.7, Continuous duty, 1.15 Service Factor, Manual thermal protection, Efficiency: 81.5, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-7/8, Shaft Diameter 5/8. Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated ...

General Purpose, Capacitor Start-Inductor Run Motor: 1.5HP, 3450 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 17/8.5, Continuous duty, 1.0 Service Factor, Manual thermal protection, Efficiency: 72, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-7/8, Shaft Diameter 5/8. Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by ...

Baldor-Reliance Motor, 5HP,3450RPM,1PH,60HZ,56/56H,3535LC,ODTF Features: Ball bearing design 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts Manual thermal overload located in the conduit box UL and CSA recognized component approval 200°C copper windings. Typical Applications: Pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and coupled mount designs.
