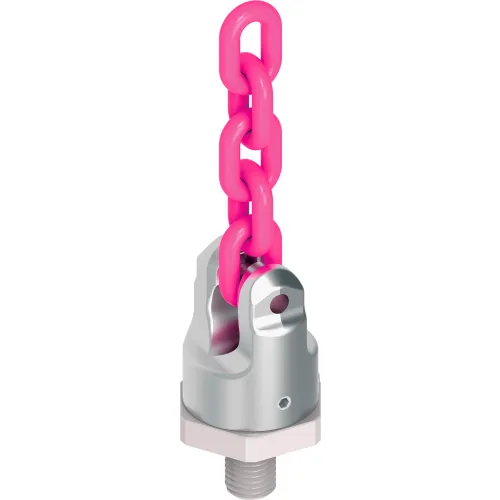

RUD Powerpoint Hoist Ring, 360 Pivot, 8800 lb. Load Capacity

VRS-F includes star key. Lifting points pivots 360 degrees. Easy adjustment in load direction. Non-removable RUD-bolt. Clear marking of the minimum WLL for all loading directions. Clear marking at the bolt head: RUD, thread size, batch number. Variable bolt lengths available for tapped or through holes. Available as Metric or UNC Thread. Maximum operation temperature range WITHOUT reduction of WLL -40 to 100 degree Celsius. Maximum operation temperature WITH reduction of WLL 350 degree Celsius.

Pentagonal shape for a clear determination to common lifting points (i.e. eye bolts). Lifting points rotates 360 degrees for an easy adjustment in load direction. Clear marking of the minimum WLL for all loading directions. Body and bolt made out of Duplex Steel 1.4462 (high resistance in sea water and in environment with a high concentration of chlorine ions.) Non-removable special bolt. Clear marking at the bolt head: RUD, thread size, batch number, class of strength. Standard Metric thread. Variable thread lengths are available for usage at thread holes and at through hole fixtures. ...

Ball bearing for shock-free rotating and turning with less friction. Lifting points pivots 360 degrees. Suspension ring with enlarged pivoting area. Available as Metric or UNC Thread. Clear marking of the minimum WLL for all loading directions. Patented markings for easy determination for withdraw of service as well as the determination of the load angle. Rotatable at nominal WLL, 90 degree to the bolt-on direction. Variable bolt lengths available for tapped or through holes. Non-removable special bolt. Large distance between bolt-on surface and load to avoid damage. Maximum operation ...

VLBG-Plus with ICE-Bolt lifting points pivots 360 degrees. Suspension ring pivots 180 degrees. Optimal WLL with captive but exchangeable ICE-Bolt with special corrosion protection. Clear marking at the bolt head: RUD, ICE, thread size, batch number and class of strength. Clamping spring works as a noise reduction and holds the suspension ring in the requested position. Clear marking of the minimum WLL for all loading directions. Available as Metric or UNC thread. Variable bolt lengths available for tapped or through holes. Quick and easy installation with just one bolt connection. ...

The threaded hook for all lifting means. Robust, forged safety hook. Assembly with flat/ring wrench or allen key possible. Area of application in hook plane: 150 degrees. Areas of application at lateral load: +45, -45 degrees. Maximum operation temperature range WITHOUT reduction of WLL -40 to 100 degree Celsius. Maximum operation temperature WITH reduction of WLL to 350 degree Celsius.
