- Cast iron twin cylinder pump
- One piece cast iron crank case
- Thermally stable cast iron cylinder body
- Automotive style ball bearings
- Durable Swedish stainless steel reed valves
- Oil level sight glass
- Easily accessible oil fill
- 12" cast iron balanced fly wheel
- Heavy duty 3.7 HP, 208-240 spread voltage induction motor
- 2" tank pressure gauge
- Shipped with synthetic oil for optimum performance and long life
- ASME certified tank

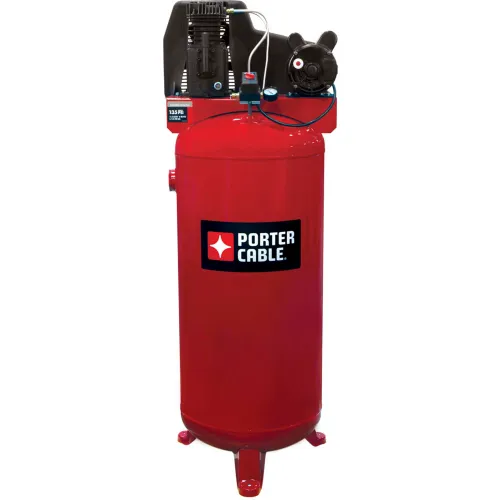

Porter Cable® PXCMLC3706056, 3.5HP, Single-Stage Comp, 60 Gal, Vert., 135PSI, 11.5CFM, 1PH 230V
Write a Review
|
Questions & Answers (0)
Product Description
FEATURES & BENEFITS:
PRICE
$1,479.00
1
1
Free Shipping Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 27 in |
| Width | 31 in |
| Height | 71 in |
| Weight | 236 lbs |
| Tank Size | 60 gal |
| Tank Outlet | 3/8" |
Product Details
| Oil Type | Oil Lubricated |
| Air Dryer | No |
| Oil System | Splash Lubricated |
| Pump Drive | Belt Drive |
| Pump Material | Cast Iron |
| Tank Drain Valve | Manual |
| Max PSI | 135 psi |
| Phase | 1 |
| Tank Orientation | Vertical |
| Oil Sight Glass | No |
| Manufacturers Part Number | PXCMLC3706056 |
| Pump Type | Single-Stage |
| Low Oil Shutoff | No |
| Brand | Porter-Cable |
| Type | Single-Stage |
| CFM | 11.5 CFM |
| Horsepower | 3.5 HP |
| Color | Red |
| After Cooler | No |
| Voltage | 230 V |
| Air Filter | No |
Warranty
| Warranty | 2 yr |
Compliance & Certifications
| Certifications | CSA, ASME |
