EMAX

Model # :WBB3785026

MPN #: E01ISXXS05V060VXXXMK

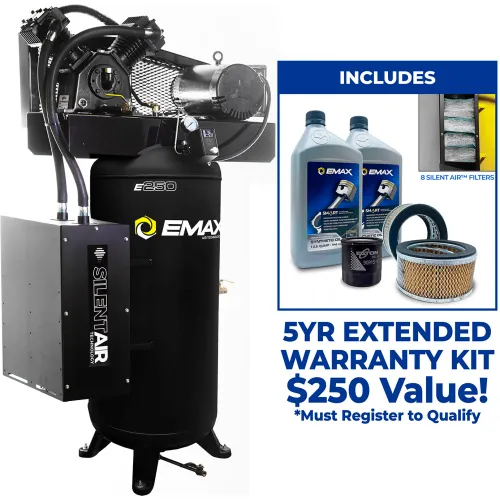

EMAX® Silent Air Industrial Single Stage Air Compressor with Isolator Pads, 5 HP, 60 Gallon

Product Description
The EMAX® 250 Silent Air Series 5 HP 60 Gal. 1-stage 2 Cylinder, single phase air compressor is designed for up to 50,000-hours (based on B-10 bearing life, of use with proper maintenance. This EMAX® air compressor is equipped with an all-cast iron splash lubricated pump producing 18.5 CFM at 100 PSI. This unit features our patented Silent Air system already installed. The Silent Air system dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4-levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. It also features industrial grade 1.1 Service Factor 1740 RPM electric motor, Condor Pressure Switch, manual drain valve, 60 Gal. powder coated ASME tank with 1/4 in. mounting pads, OSHA approved 13 G steel belt guard, 3/4 in. air outlet, all back by the best warranty around. Pump comes with 70HR break-in oil, this compressor also includes your first maintenance kit for use after your first 70 hours of compressor break-in. Must register your warranty for extended warranty coverage to be active. Includes Maintenance EFKIT008AWBS Kit. EMAX® air compressors are built and tested in Ohio with reliability and durability in mind.

PRICE
$3,129.00

1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length35 in
Height69 in
Tank Size60 gal
Tank Outlet3/4 in

Product Details

TypeSingle-Stage
CFM18.5 CFM
Oil TypeSynthetic
Horsepower5 HP
Oil SystemSplash Lubricated
Pump DriveBelt Drive
ColorBlack
Pump MaterialCast Iron
Tank Drain ValveManual
Max PSI150 psi
Start TypeElectric
Voltage230 V
Phase1
Tank OrientationVertical
Oil Sight GlassYes
Manufacturers Part NumberE01ISXXS05V060VXXXMK
BrandEMAX

Warranty

Warranty1 Year Standard, 5 Years Extended, Lifetime Extended with Maintenance Kit yr

Compliance & Certifications

CertificationsETL, ASME Certified
